Electric Wire Rope Hoist(With Electric Travelling Trolley)

Electric Wire Rope Hoist (With Electric Travelling Trolley)

Serving Areas

Electric Wire Rope Hoists are designed, manufactured & tested to meet IS standards, Robust Gearbox design ensures better reliability of the product life span and safety.

More Details:

  • HSN Code: 84251110
  • Warranty: 12Month
  • 100% Original Products
  • Secure Payments
  • 100% Buyer Protection

Can Meet Various Demands Of The Customer

We as a leading electric wire rope hoist manufacturer serve electric wire rope hoist to our customers with various models and designs to meet their ultimate demands.

High Quality Ensures Good Working Performance

All components manufactured are passed through several quality checks, which helps us to ensure the improved working performance of the equipment.

Wire Rope & Rope Guide Arrangement

High tensile 1960 N/MM Sq. wire rope with good flexibility is used with the precisely machined Guiding arrangement which increases the life of the electric wire rope hoist and is served very safely.

Heavy-Duty Mechanical Parts

The complete structure of the electric wire rope hoist is heavy-duty designed which provides rigidity to the machine for smooth and better operation.

Electric Wire Rope Hoist Item Description:

Heavy-duty fabricated Structure for hoisting & trolley, Cast iron Gear Box Housings with High Precision-cut Oil Cooled Helical internal gears & Pinion makes this machine the most demanding Machine in the industry. All Standard models of Electric wire rope hoists are designed with M5 & M6 rated Gearboxes to improve machine performance.

Heavy Duty ball & Spherical Roller Bearings are provided for Gear Box and Wire rope Drums. Capacity ranging from 0.5 Ton-15 Tons for Single girders are available in different models.

Application:

Electric Wire Rope Hoists are the most preferred Lifting equipment in almost all types of Industry.

    • Assembly Shops
    • Cement Industries.
    • Glass Industries
    • Steel Industry
    • Textile Industry
    • Heavy Fabrication Workshops.
    • Coil Handling

Features / Advantages:

  • Fail-safe Electro Magnetic – Instant braking Arrangement.(DC)
  • Heavy-duty Electric Motors.
  • Provided with safety limit switches.
  • Increase Productivity.
  • Micro Operating speeds by V3F Control Panels.
  • Unbreakable and high-performance push button pendent stations.
  • Customization can be done with Operating speeds and electrical Protection.
  • Flame Proof Hoists are also available for all variants.
  • Can be provided with Higher lifts

Electric Wire Rope Hoist Variants:

  • Hoist with Manual Trolley – Electric Hoists are provided with Manual Geared or Push-pull Trolley for Load Movement in Monorail beam. Hoisting Motion will be electrical and cross-travel motion would be manual.
  • Hoist with Electrical Trolley – Electric Hoists are provided with an Electrical Trolley where hoisting and cross travel can be operated electrically through a push-button pendant.

Why Choose Globe Overseas?

“Globe” we are not only electric hoist manufacturers but also your partners for providing the best material handling solutions as per requirement. We provide a wide variety of lifting equipment.

We are Specialists in Design, Engineering, manufacturing, supply, installation, and after-sales service where we understand our customer’s requirements.

Salient Features

  • DESIGN “Globe” Electric Wire Rope Hoists are designed as per IS 3938 – 1983 (R2012) and are suitable for light and medium-duty applications. We also do customizations in hoists as per Customer Requirements.
  • CONSTRUCTION “GLOBE” hoist have a unique modular construction which makes them an ideal choice since each sub assembly is easily accessible individually, thus reducing the time and cost involved in the maintenance.
  • STRUCTURE Years of Experience for different applications enabled “Globe” to produce heavy duty / robust structure which ensures long life & safety of the user, material & machinery.
  • ROPE DRUM Rope drums are fabricated with seamless tubes having flanges at both ends. Each drum is precisely machined and grooved suitably for specified wire ropes. Ropes guiding arrangements ensures & protect overlapping of wire rope & winds full length of rope in one layer.
  • GEAR BOX Totally enclosed, immersed oil bath lubricated Gearbox, fitted with heavy duty precision cut helical Gears and Pinions with alloy Steel material.
  • HOOK Confirming to IS: 15560 Free to rotate & swivel.
  • BRAKE Instant action ‘fail to safe’ Electromagnetic DC disc type, ensures maximum safety and reliability in operation.
  • LIMIT SWITCH Snap action limits switch to prevent over hoisting and over lowering is provided for maximum safety.
  • CONTROL From push button pendent station supported with steel wire rope, operating at 110 volt from ground level.

Flame Proof / Electric Hoist

Whether it’s a natural gas plant or another, the extraction of natural resources has always been challenging because of the presence of highly flammable gasses, such as methane, ammonia, acetylene, etc. In these regions, even a light spark can be very dangerous, so work must be done by following the utmost safety standards, including the use of a Flame Proof Electric Wire Rope Hoist.

The spark proof electric wire rope hoist is quite popular in plants rich in flammable gasses because they give the best output without producing any spark. The mechanical components of this device are coated with a blend of phosphorus-bronze to prevent any explosion in the plant.

The Globe’s Flame Proof Electric Wire Hoist is the best in the standard as each element of this utility is perfectly designed and meets all the safety norms.

In addition, such a device can lift heavy objects from 1 ton to 15 tons, which is applicable for single girders. And to lift the objects beyond the specified limit, you can go with double girders where the Globe’s Flame Proof Wire Hoist can lift above 15 tons to 25 tons weight.

Safety Standards Of Globe Flame Proof Electric Wire Rope Hoist

The work is performed with high-class safety standards in a hazardous area where flammable gasses are abundant in nature. The reason is a light spark can explode an entire plant, and many people can get hurt. To prevent the same, all the equipment, whether mechanical or electrical, is designed that is suitable for those regions.

The Globe Flame Proof Electric Wire Rope Hoist is manufactured as per the industrial norms that include;

Electrical Components

The main component of a flameproof electric wire rope hoist is the induction motor that transfers electrical energy to mechanical energy to the rotating device. The motor used in the Globe’s flameproof wire rope hoist and other components, such as the Brake, Limit Switch, and Push Button, is ATEX Certified.

Mechanical Components

The mechanical components of a spark-proof electric wire rope hoist need phosphorus-bronze coating. The reason is that friction between the metals can cause a spark, which can be dangerous for such a plant.

So, to avoid any kind of friction, a coating is applied. The mechanical components in Globe’s Spark Proof Electric Wire Rope Hoist are perfectly coated with phosphorous-bronze. In addition, the materials used in this device are non-ferrous such as Brass or Gun Metal.

Key Areas Where Globe Spark Proof Electric Wire Rope Hoist Can Be Used

Globe Flame Proof Electric Hoist is specially designed for use in hazardous areas, and a list of a few is provided below.

1] Coal Mines

2] Refineries

3] Chemical Process Plants

4] Gas Power Plants

5] Warehouse

Classification

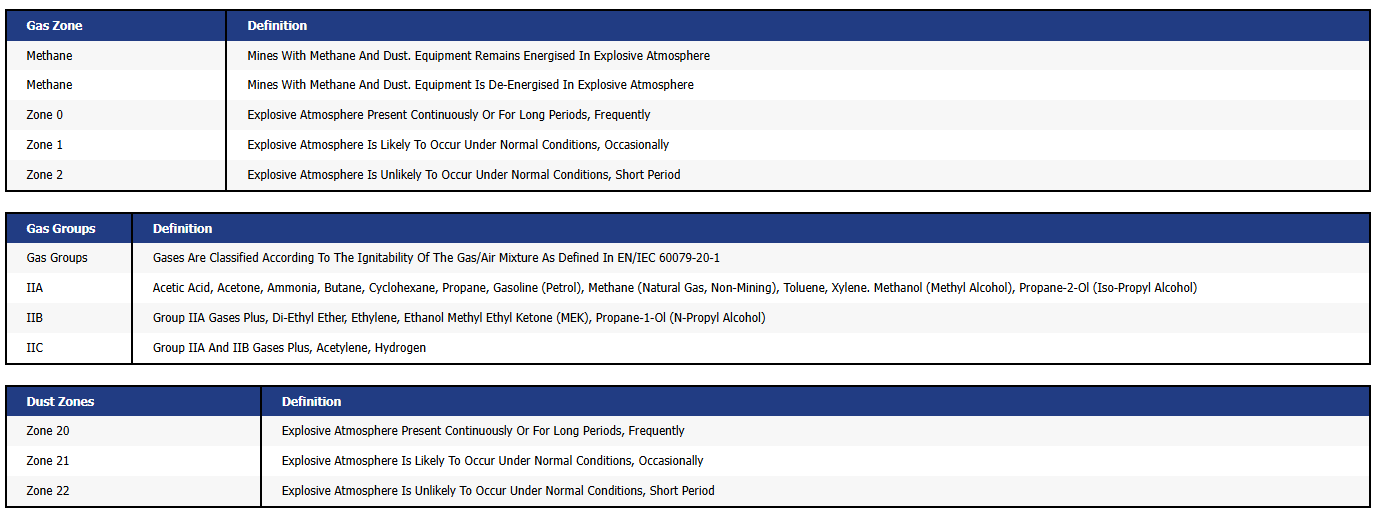

“GLOBE” Flame Proof Electric Hoists are offered for both Single Girder & Double Girder Mountings designed as per Hazardous Area Zone 1, Gas group IIA, Zone 2, Gas group IIA, IIB, IIC and Dust Zone 21 & 22 as per IS/IEC 60079-7.

Capacity Range :-

The mechanical components of a spark-proof electric wire rope hoist need phosphorus-bronze coating. The reason is that friction between the metals can cause a spark, which can be dangerous for such a plant.

So, to avoid any kind of friction, a coating is applied. The mechanical components in Globe’s Spark Proof Electric Wire Rope Hoist are perfectly coated with phosphorous-bronze. In addition, the materials used in this device are non-ferrous such as Brass or Gun Metal.

Application Area’s

  1. Chemical process plants
  2. Coal mines
  3. Refineries
  4. Gas power plants
  5. Warehouse

Safety Features

  1. Electrical components like Motor, Brake, Limit switch, Push button pendent are ATEX certified.
  2. Mechanicals components like Hook are coated with phosphorus Bronze.
  3. All metal to metal contacts are designed and manufactured with Non – Ferrous material (Gun metal / Brass)
Enquire Now
Our Brochure

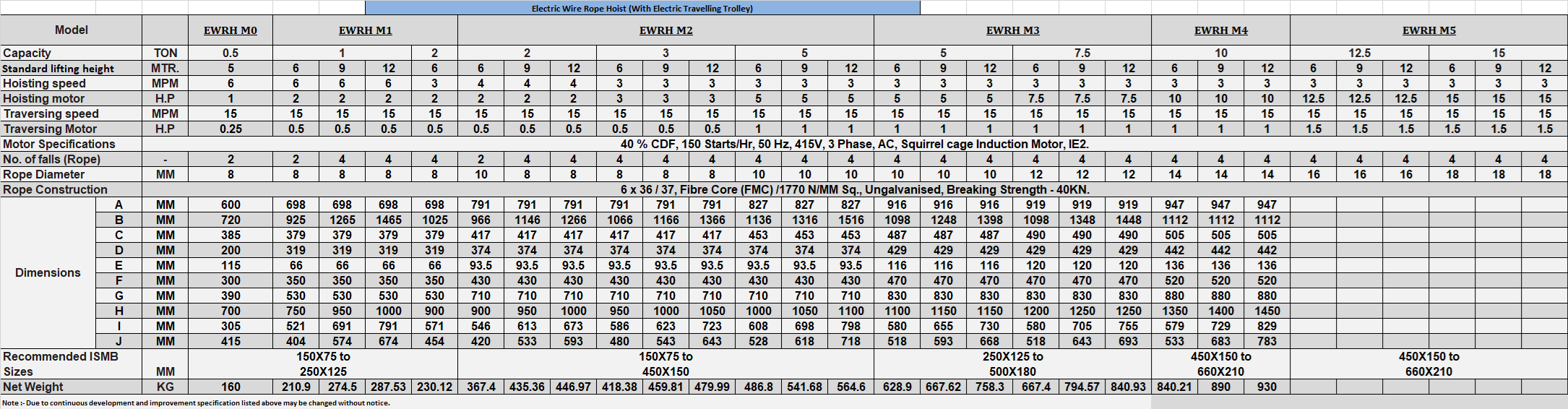

Technical Specifications

Electric Wire Rope Hoist (With Electric Travelling Trolley)
Model EWRH M0 EWRH M1 EWRH M2 EWRH M3 EWRH M4 EWRH M5
Capacity TON 0.5 1 2 2 3 5 5 7.5 10 12.5 15
Standard lifting height MTR. 5 6 9 12 6 6 9 12 6 9 12 6 9 12 6 9 12 6 9 12 6 9 12 6 9 12 6 9 12
Hoisting speed MPM 6 6 6 6 3 4 4 4 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3
Hoisting motor K.W 1 2 2 2 2 2 2 2 3 3 3 5 5 5 5 5 5 7.5 7.5 7.5 10 10 10 12.5 12.5 12.5 15 15 15
Traversing speed MPM 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15
Traversing Motor H.P 0.25 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 1 1 1 1 1 1 1 1 11 1 1 1.5 1.5 1.5 1.5 1.5 1.5
Motor Specifications 40 % CDF, 150 Starts/Hr, 50 Hz, 415V, 3 Phase, AC, Squirrel cage Induction Motor, IE2
No. of falls (Rope) - 2 2 4 4 4 2 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 44 4 44 4 4
Rope Diameter MM 8 8 8 8 8 10 8 8 8 8 8 10 10 10 10 10 10 12 12 12 14 14 14 16 16 16 18 18 18
Rope Construction 6 x 36 / 37, Fibre Core (FMC) /7X19 IWRC, Ungalvanized, Breaking Strength : 40KN

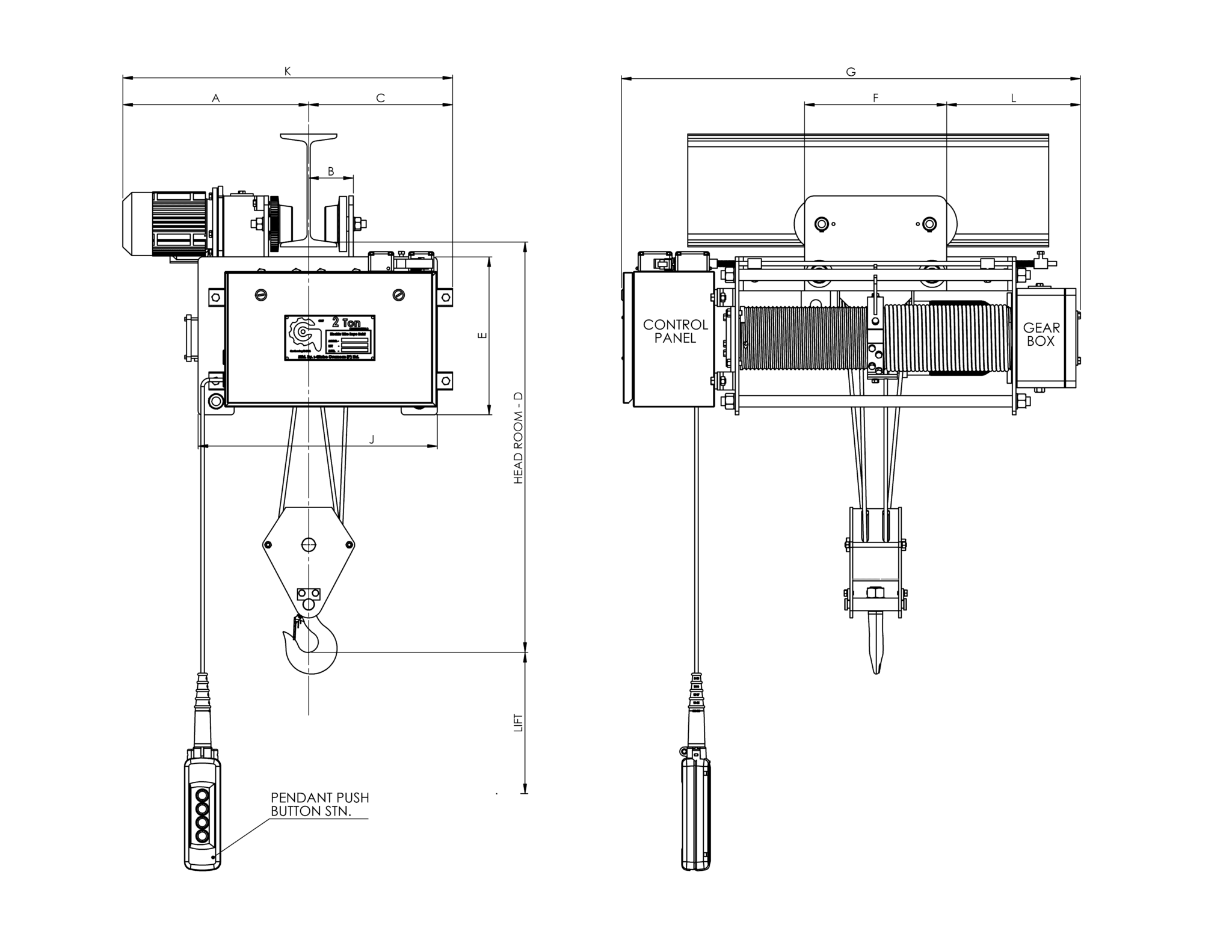

Dimension A MM 600 698 698 698 698 791 791 791 791 791 791 827 827 827 916 916 916 919 919 919 947 947 947
B MM 720 925 1265 1465 1025 966 1146 1266 1066 1166 1366 1136 1316 1516 1098 1248 1398 1098 1348 1448 1112 1112 1112
C MM 385 379 379 379 379 417 417 417 417 417 417 453 453 453 487 487 487 490 490 490 505 505 505
D MM 200 319 319 319 319 374 374 374 374 374 374 374 374 374 429 429 429 429 429 429 442 442 442
E MM 115 66 66 66 66 93.5 93.5 93.5 93.5 93.5 93.5 93.5 93.5 93.5 116 116 116 120 120 120 136 136 136
F MM 300 350 350 350 350 430 430 430 430 430 430 430 430 430 470 470 470 470 470 470 520 520 520
G MM 390 530 530 530 530 710 710 710 710 710 710 710 710 710 830 830 830 830 830 830 880 880 880
H MM 700 750 950 1000 900 900 950 1000 950 1000 1050 1000 1050 1100 1100 1150 1150 1200 1250 1250 1350 1400 1400
I MM 305 521 691 791 571 546 613 673 586 623 723 608 698 798 580 655 730 580 705 755 579 729 829
J MM 415 404 574 674 454 420 533 593 480 543 643 528 618 718 518 593 668 518 643 693 533 683 783
Recommended ISMB Sizes MM 150X75 to 250X125 150X75 to 450X150 250X125 to 500X180 450X150 to 660X210 450X150 to 660X210
Net Weight KG 160 210.9 274.5 287.53 230.12 367.4 435.36 446.97 418.38 459.81 479.99 486.8 541.68 564.6 628.9 667.62 758.3 667.4 794.57 840.93 840.21 890 930
Note :- Due to continuous development and improvement specification listed above may be changed without notice.
