Electric Chain Hoist is extensively used in the warehouse, workshops, unloading or relocating heavy loads, Steel & Power Plants, Glass manufacturing & Toughening Industries. Lifting machines is the best chain pulley block manufacturers in delhi. All types of Automobile industries and their ancillaries, Plastic processing, Steel Furnaces, Coil handling, paper & Pulp Industries, etc.
Electric Chain Hoist(With Electric Travelling Trolley)
Electric Chain Hoist (With Electric Travelling Trolley)
Serving Areas
Engineering
All Mechanical & Structural design parameters are based on IS 3177 & 807, our design & development team works regularly for the up gradation of our product to meet international standards.
More Details:
- HSN Code: 84251110
- Warranty: 12Month
- 100% Original Products
- Secure Payments
- 100% Buyer Protection
Salient Features Of Electric Chain Hoist
- DESIGN
“GLOBE” Electric Chain Hoist are designed as per IS: 6547 and are suitable for Medium & Heavy duty applications. - CONSTRUCTION
“GLOBE” Hoist have a unique modular construction which makes them an ideal choice since each sub assembly is easily accessible individually, thus reducing the time and cost involved in the maintenance. - FRAME
The Frame is of sturdy design, fabricated from tested steel plates and is welded/bolted type. - GEAR BOX
Totally enclosed, gear box with gears made from EN-9/EN- 24, steel and teethed on precision hobbing machines, hardened & tempered. The gears are lubricated with high viscosity grease and need no further lubrication. - ELECTRIC MOTORS
3 PH. 440 Volt, A. C. 50 cycles, Squirrel cage Induction motors normally of BBL/CGL make is used. - LOAD CHAIN
Confirming to IS : 6216-1971, Grade 80, tested, calibrated and duly heat treated. - BRAKE
Instant action ‘Fail to Safe’ Electro Magnetic disc brakes are incorporated to ensure maximum safety and reliability in operation. - LIMIT SWITCH
Snap Action limits switches are used to prevent over hoisting and over lowering. - CONTROL PANEL
Totally enclosed, dust and moisture-proof panel housing with components of standard make like ‘Schneider Electric/ABB, etc., provided control at low voltage for the safety of the operator. - HOOKS
Steel Forge confirming to IS : 15560-2005. Free to rotate & swivel. - TEST
Each Hoist is tested to 25% Overload with confirmation to IS : 6547-1971.
Electric Chain Hoist Item Description:
The Electric Chain Hoist is a revolutionary machine in the trade of material handling equipment is now the most preferred Electric hoist because of its compact and safe design. “Globe” is a leading brand for the manufacturing of Electric Chain hoist ranging from 1 Ton – 5 Ton.
As a leading electric chain hoist is the best chain pulley block manufacturers in Delhi we offer high-quality standard products and ensure safety & reliability. Globe is a well-renowned brand for various kinds of material handling equipment in all parts of India.
Electric Chain Hoist Application:
- CNC/VMC Tool rooms.
- Machine Shops.
- Fabrication shops
- Assembly Shops
- Cement Industries.
Features/Advantages:
- Fail-safe Electro Magnetic – Instant braking Arrangement.(AC/DC)
- Heavy-duty Electric Motors.
- Provided with safety limit switches.
- Increase Productivity.
- Micro Operating speeds by V3F Control Panels.
- Unbreakable and high-performance push button pendent stations.
- Customization can be done wrt to Operating speeds & Electrical Protection.
- Flame Proof Hoists are also available for all variants.
Electric Chain Hoist Variants:
- Hook suspended Type – Electric Hoists are provided with Fixed Hook for Hoisting Motion only.
- Hoist with Manual Trolley – Electric Hoists are provided with Manual Geared or Push-pull Trolley for Load Movement in Monorail beam. Hoisting Motion will be electrical and cross travel motion would be manual.
- Hoist with Electrical Trolley – Electric Hoists are provided with Electrical Trolley where hoisting and cross travel both can be operated electrically through a push-button pendant.
Why Globe Overseas?
“GOPL” Electric Chain Hoist is designed and manufactured completely in accordance with IS Standard as well as international Standard.
Technical Specifications
ELECTRIC CHAIN HOIST WITH TROLLEY
| Model | GCH | |||||
|---|---|---|---|---|---|---|
| MC1-81 | MC1-82 | MC2-102 | MC3-102 | |||
| Capacity | TON | 1T | 2T | 3T | 5T | |
| Standard lifting height (Height) | MTR | 3 | 3 | 3 | 3 | |
| Main Hoisting Speed | MPM | 6 | 3 | 3 | 3 | |
| Main Hoisting Motor | K.W. | 1.5 | 1.5 | 2.2 | 3.7 | |
| Load Chain (DiaXPitch) | MM | 8X24 | 8X24 | 10X30 | 10X30 | |
| No. Of Falls / Dia | MM | 1 / 8 MM | 2 / 8 MM | 2 / 10 MM | 2 / 10 MM | |
| Cross Travel Speed | MPM | 15 | 15 | 15 | 15 | |
| Cross Travel Motor | K.W. | 0.37 | 0.37 | 0.37 | 0.75 | |

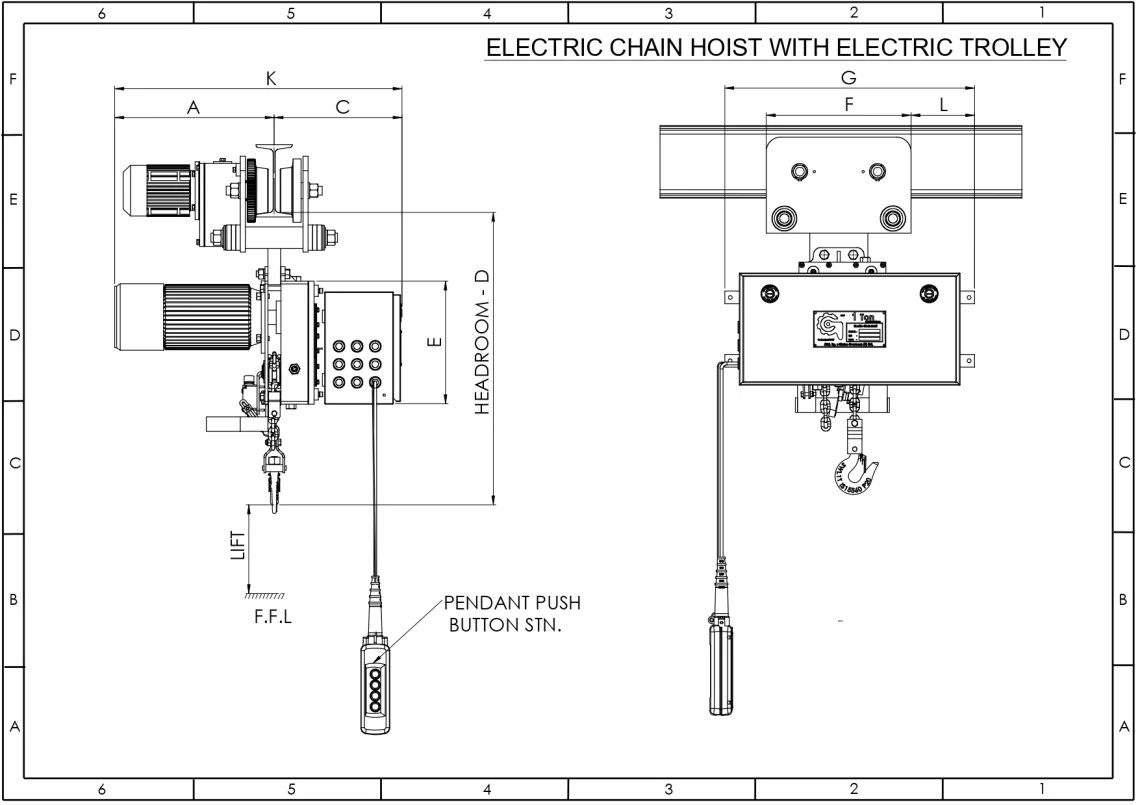

| Dimension | A | MM | 441 | 441 | 453 | 500 |
| B | MM | 66 | 94 | 94 | 94 | |
| C | MM | 352 | 352 | 376 | 389 | |
| E | MM | 340 | 340 | 380 | 420 | |
| F | MM | 315 | 400 | 400 | 400 | |
| G | MM | 690 | 690 | 620 | 620 | |
| H | MM | 770 | 900 | 985 | 1051 | |
| K | MM | 793 | 793 | 829 | 889 | |
| L | MM | 198 | 155 | 100 | 110 | |
| Packing measurement (LXWXH) ECH | CM | 74x69x96 | 74x69x96 | 74x69x96 | 74x69x96 | |
| Packing measurement (LXWXH) Trolley | CM | 55X41X25 | 55X41X25 | 58X52X31 | 67X64X38 | |
| Net weight with 3 mtr. lift | KG | 150 | 203 | 222 | 254 | |
| Gross Weight | KG | 190 | 243 | 259 | 290 | |
| Extra weight/Mtr. lift | KG | 1.38 | 2.76 | 4.24 | 4.24 | |
Note: Due to continuous development and improvement specification listed above may be changed without notice.
