Electric Wire Rope Hoists are designed, manufactured & tested to meet IS standards, Robust Gearbox design ensures better reliability of the product life span and safety.
Electric Winch Machine
Electric Winch Machine
Safe & Reliable
Design
- Available in 1000 mtr and above of rope winch drum winding capacities.
- Variable speed, customized gearboxes, and dual braking are add-on features available on demand.
Electric Winch Machine Item Description:
Electric winch Machine is used for Pulling and lifting Applications for various industries especially Construction where the pulling distance is more and we are the best chain pulley block manufacturers in Delhi . No such material handling equipment can serve this application other than an electric winch. It can be designed with so many variants as per customer needs where Drum winding capacity, Operating speeds, Single & Double Rope Winch Drums are the major understandings for the selection of perfect customer needs.
Applications:
Construction, Mining, Hydro Projects, Belt pulling and wagon Pulling on Rails. Lifting machines is the best chain pulley block manufacturers in delhi. We provide the wide range of products. Here are some of the major applications of electric winches machines.
Features / Advantages:
- Multifunctional and can be manufactured at higher capacities also.
- Long Distance pulling can be done.
- High-speed winches can reduce travel time.
- Low Maintenance.
- Spares are easily available all around.
- Dual Braking makes the operation safer.
- Winches can be designed with helical and worm Gearboxes.
- Multiple Layering of rope can be done with a rope winch guiding arrangement.
Salient Features
DESIGN :
“Globe” Electric Winch Machine is designed as per IS: 9507-1979 (Reconfirmed 2006) and is suitable for Medium & Heavy duty applications.CONSTRUCTION :
“GLOBE” Winches have a unique modular construction which makes them an ideal choice since each sub assembly is easily accessible individually, thus reducing the time and cost involved in the maintenance.FRAME :
The Structural Base Frame is of sturdy design, fabricated from tested steel plates and is welded/bolted type.GEAR BOX :
Totally enclosed Worm/ Helical Type with suitable open Reductions as per speed requirement. All gear are Precision hob machined & are lubricated with high Quality Gear Oil.ELECTRIC MOTORS :
3 Phase, 415 Volt, 50Hz , AC , S1/S4 Duty, Squirrel cage induction motors. Make- BBL/ CGL/ ABB are used.BRAKE :
Electro magnetic Disc / Shoe or Electro Hydraulic thrustor shoe type Brake as provided as per required Torque.LIMIT SWITCH :
Rotary Geared type limit switches to Prevent over travel in both Directions reverse & forward, motion.CONTROL PANEL :
Totally enclosed, dust & moisture proof Panel Housing, IP 55 Protected, housed with Heavy duty Contactors & Safety Components for Safe operation.
Make of Components – Schneider electric / ABB / L&T / SiemensSAFETY GUARD :
All open Reduction Gear are covered with Safety Guard to avoid any kind of Mishap, Specially for Machine operator.Test : All machines are tested to 25% over load as per relevant IS Standard.
OPTIONAL ACCESSORIES :
Wire Rope
Eye Hook
VFD Panel

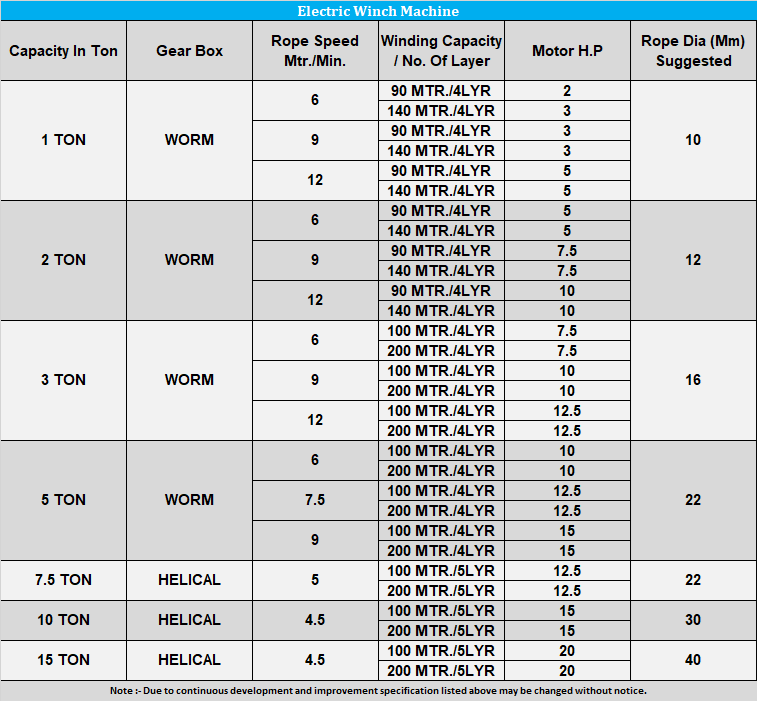

Technical Specifications
Electric Winch Machine
| MODEL |
CAPACITY | TYPE OF GEAR BOX | ROPE SPEED (Mtr./Min.) | Winding Capacity / No. of Layers | MOTOR K.W. | ROPE DIA (mm) Suggested |
|---|---|---|---|---|---|---|
| AM101TEWM6A | 1 Ton | Worm | 6 | 100 Mtr./3Lyr | 1.5 | 8 |
| AM101TEWM9A | 9 | 100 Mtr./3Lyr | ||||
| AM102TEWM4.6A | 2 Ton | Worm | 4.6 | 140 Mtr./4Lyr | 2.2 | 10 |
| AM202TEWM7.5A | 7.5 | 140 Mtr./4Lyr | ||||
| AM303TEWM5.2A | 3 Ton | Worm | 5.2 | 100 Mtr./3Lyr | 3.7 | 12 |
| AM303TEWM5.2B | 200 Mtr./4Lyr | |||||
| AM303TEWM7.5A | 7.5 | 100 Mtr./3Lyr | 5.5 | |||
| AM303TEWM7.5B | 200 Mtr./4Lyr | |||||
| AM405TEWM6.5A |
5 Ton | Worm | 6.5 | 100 Mtr./3Lyr | 7.5 | 16 |
| AM405TEWM6.5B | 200 Mtr./4Lyr | |||||
| AM405TEWM6.5C | Helical | 300 Mtr./4Lyr | ||||
| AM405TEWM6.5D | 500 Mtr./6Lyr | |||||
| AM405TEWM8A | Worm | 8 | 100 Mtr./3Lyr | 9.3 | ||
| AM405TEWM8B | 200 Mtr./4Lyr | |||||
| AM405TEWM8C | 300 Mtr./4Lyr | |||||
| AM405TEWM8D | Helical | 500 Mtr./6Lyr | ||||
| AM575TEWM4.4A | 7.5 Ton | Helical | 4.4 | 100 Mtr./3Lyr | 7.5 | 20 |
| AM575TEWM4.4B | 200 Mtr./4Lyr | |||||
| AM575TEWM4.4C | 300 Mtr./4Lyr | |||||
| AM575TEWM4.4D | 500 Mtr./6Lyr | |||||
| AM575TEWM5.5A | 5.5 | 100 Mtr./3Lyr | 9.3 | |||
| AM575TEWM5.5B | 200 Mtr./4Lyr | |||||
| AM575TEWM5.5C | 300 Mtr./4Lyr | |||||
| AM575TEWM5.5D | 500 Mtr./6Lyr | |||||
| AM610TEWM4.8A | 10 Ton | Helical | 4.8 | 100 Mtr./3Lyr | 11 | 22 |
| AM610TEWM4.8B | 200 Mtr./4Lyr | |||||
| AM610TEWM4.8C | 300 Mtr./4Lyr | |||||
| AM610TEWM4.8D | 500 Mtr./6Lyr | |||||
| AM715TEWM4.5A | 15 Ton | Helical | 4.5 | 100 Mtr./3Lyr | 15 | 25 |
| AM715TEWM4.5B | 200 Mtr./4Lyr | |||||
| AM715TEWM4.5C | 300 Mtr./4Lyr | |||||
| AM715TEWM4.5D | 500 Mtr./6Lyr | |||||
| AM820TEWM4A | 20 Ton | Helical | 4 | 500 Mtr./5Lyr | 18.5 | 28 |
| AM820TEWM4B | 1000 Mtr./6Lyr |
Note :- Due to continuous development and improvement specification listed above may be changed without notice.
