Mobile Floor Crane
Mobile Floor Crane
Application :
Features & Benefits :

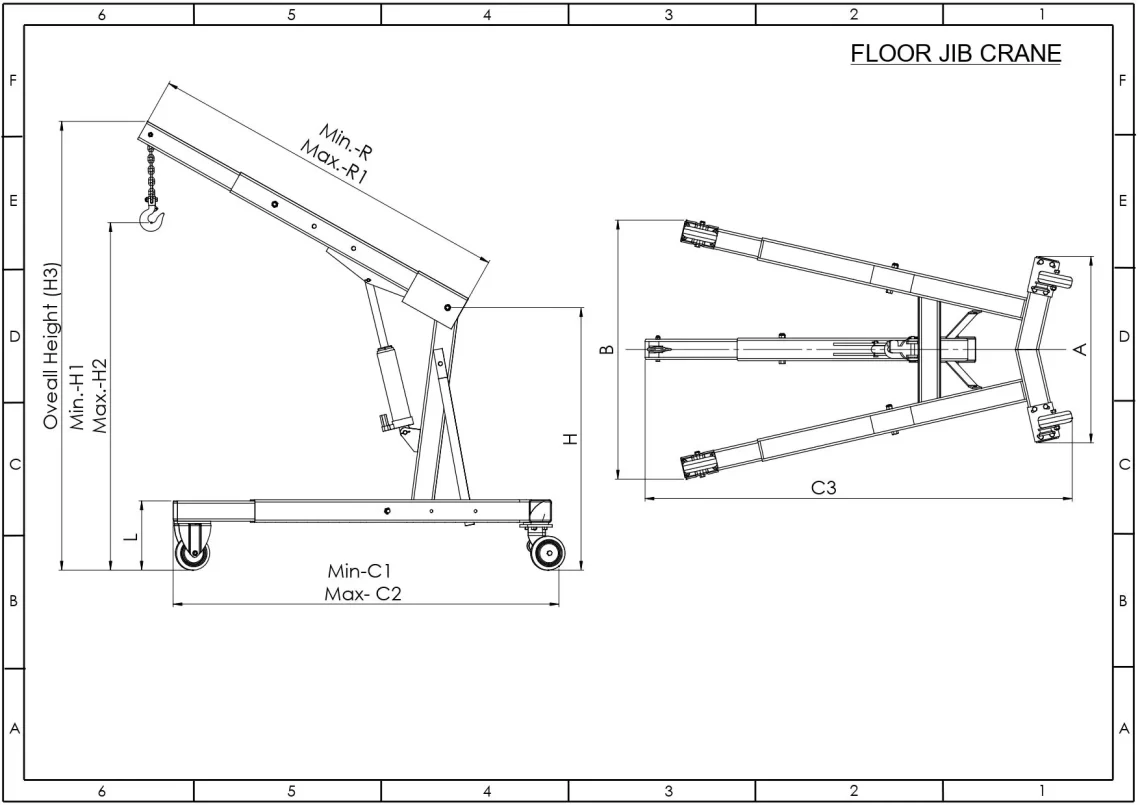

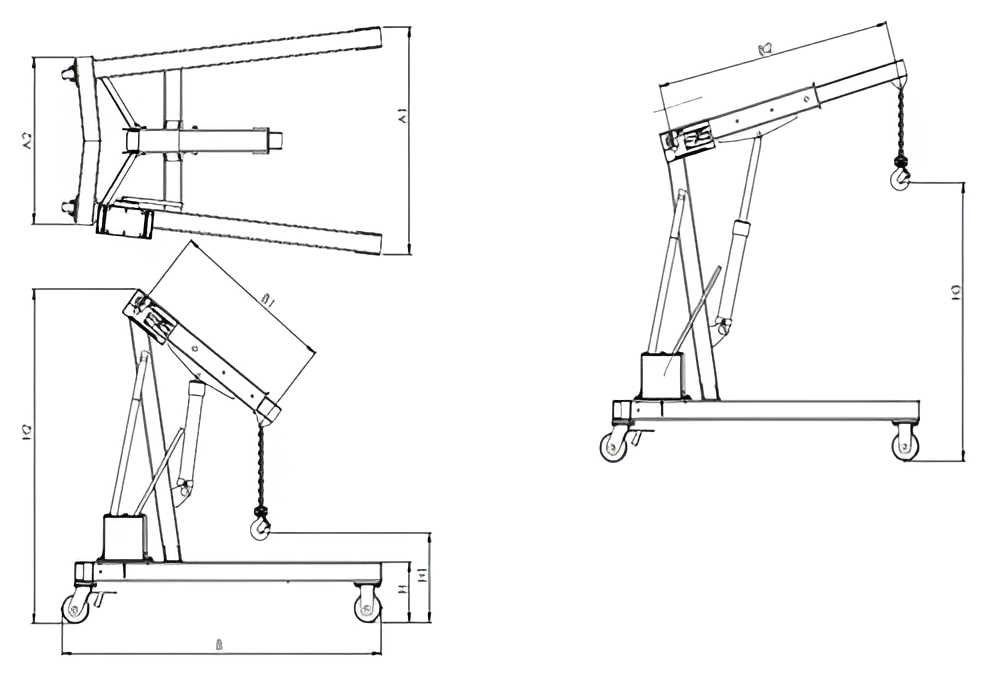

Technical Specifications
| Model | HJC-1.0 | HJC-2.0 | ||
| Capacity | TON | 1 | 2 | |
| Hand Effort | KG | 23 | 25 | |
| Dimension | A1 | MM | 900 | 1160 |
| A2 | MM | 650 | 850 | |
| B | MM | 1461 | 1775 | |
| B1 | MM | 755 | 900 | |
| B2 | MM | 1050 | 1300 | |
| H | MM | 320 | 310 | |
| H1 | MM | 433 | 460 | |
| H2 | MM | 1470 | 1707 | |
| H3 | MM | 1562 | 1420 | |
| Wheel Size | MM | Ø150 | Ø150 | |
| Net Weight | KG | 155 | 175 | |
| Gross Weight | KG | - | - | |
