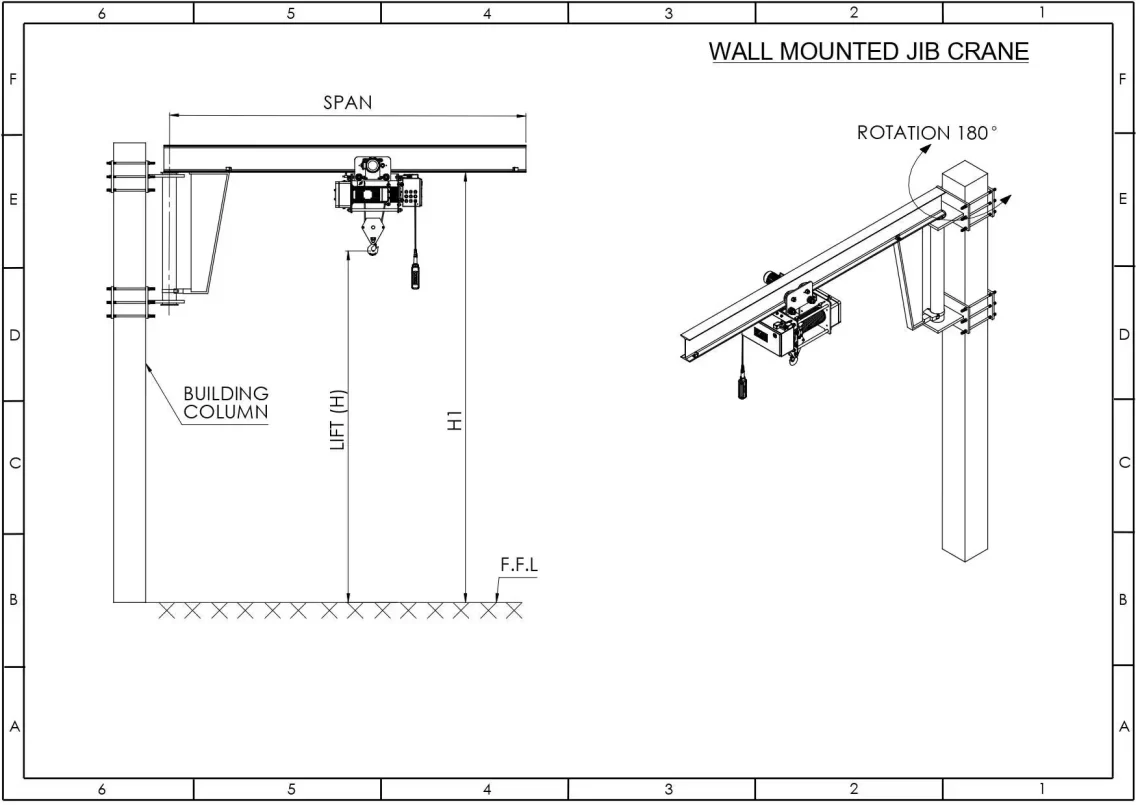

Wall Mounted Jib Cranes

Wall Mounted Jib Cranes

  • Application :
    Light / Medium Duty Wall mounted jib cranes are very useful for different industrial applications like CNC/VMC tool rooms, fabrication shops, Assembly shops, paint shops, etc.
  • Benefits :
    One of the major benefits of these jib cranes are that it does not require any kind base foundation and individual column for the rotation of jib arm, which requires lot of space and expense. Wall mounted jib cranes can be mounted on existing building RCC/Fabricated Steel structure Column considering its strength were it has to be installed by the manufacturer.
  • Design & Lifting Capacity :
    All Jib cranes are designed on 25% Safe Working loads up to Lifting capacity of 3 Tons. Selection of Duty Cycle & service Classification will help users to have long and durability of crane components.
  • Degree of Rotation :
    Wall jib cranes are available up to 180 Degree manual and Motorised Rotations.
  • Hoisting & Cross travel Motion :
    Hoisting & Cross travel motion can be made Electrical or manual as per customer choice and as per selection of application and Classification.
  • Boom / Jib Length :
    Span ranging from 2 Mtrs to 6 Mtrs can be made.
Enquire Now

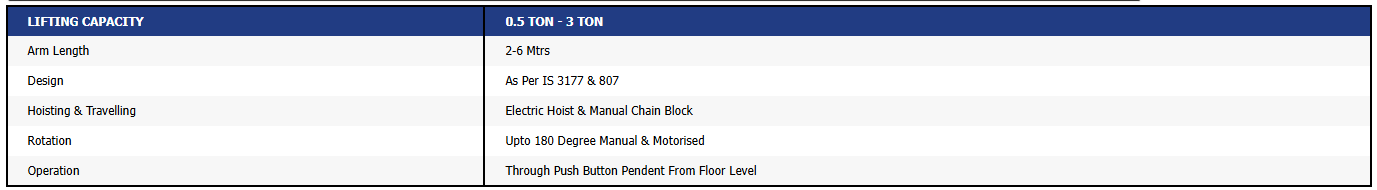

Technical Specifications​
