One of the most robust model for Indian industry, serving from more than 40 years. Heavy-duty design gives extra life span Designed for Heavy Industries and with M8 Classification. Our Robo Series is easily repairable with low maintenance.
Robo Series
Robo Series
More Details:
- HSN Code: 84251920
- Warranty: 12Month
- 100% Original Products
- Secure Payments
- 100% Buyer Protection
Salient Features
- LIFTING HOOKS & FITTING
Heavy duty steel forged hooks, capable with safety Latch are designed in accordance with the IS – 15560 standard and are build to withstand high shock loads with their ability to freely swivel and rotate. All Suspension fitting is designed with smart look and suitable to sustain static factor of safety. - FRAME
Robust, Durable and high- performance frame structure which ensures complete safety on load and overload conditions, Making it reliable and secure for various industrial applications. - LOAD CHAIN WHEELS
Steel casted, Precisely machined chain wheel to fix load chain pockets which ensures long life of chain and wheel and are tested to provide adequate strength. - GEARS
All Gears are designed for proper strength and durability, Material selection as per IS 1875, All manufacturing processes of gears are done very precisely. All gears and pinions are case hardened. - LOAD BRAKES
Provided with self -actuating Ratchet and Pawl Type automatic mechanical load brakes which prevents self- lowering of the load and arrest and sustain load in all working positions. These are also designed for smooth lowering of the load without overheating. - HAND CHAIN WHEEL
Large Diameter of wheels gives smooth and effortless lifting, Idler wheels are designed and shaped as to avoid the twisting of chain. - LOAD CHAIN
Grade 80, alloy steel load chain as per IS Standards electrically resistance welded, heat treated, tested & Calibrated as per IS- 6216. - BRAKE DISC
Asbestos free long lasting, minimum wear & more griping ability - LOAD CHAIN GUIDE
It ensures to facilitate smooth & twist free movement of load chain into chain wheel Pockets.
Robo Series - Spark Proof Chain Pulley Blocks
Whether it is a manufacturing unit, warehouse, mining factory, chemical plant, or other working areas, smoothly conveying heavy objects from one place to another can’t be imagined without using robust chain pulleys. Here spark proof chain pulley block made by Globe Overseas will be the ideal equipment at your workstation.
Globe is widely known for building world-class Spark Proof Chain Pulley Block available in Robo Series. Our Flame Proof Chain Pulley Blocks are ISO certified and allow you to continue the operations even in potentially explosive atmospheres (ATEX ZONES), hazardous, and non-hazardous areas.
The Capacity Of Globe’s Spark-Proof Chain Pulley Blocks
Globe’s Spark Proof Chain Pulley Blocks are capable of lifting from 1 ton to 25 tons. It can smoothly convey your required workpieces, such as pipes, beams, columns, etc., from one place to another. The Globe’s Flame Proof Chain Pulley Blocks are available in different sizes to lift various capacities of goods to lift them at different heights for various industries.
Materials Used To Design Globe’s Flame-Proof Chain Pulley Block
Globe’s Flame Proof Chain Pulley Blocks are sturdy enough to convey heavy objects safely and need no or less maintenance. To offer you the excellent Flame Proof Chain Pulley Blocks as a lifetime investment, we use phosphorous bronze coated material to design hooks and non-ferrous alloys like brass and gunmetal to design other chain pulley parts such as chain guide rollers, load chain sprockets, hand chain wheels, and more.
Quick Features of Flame-Proof Chain Pulley Blocks
- Capacity to carry 1 ton to 25 tons of goods
- Spark and flame resistance chain pulleys
- Ideal to use in harsh environments.
- Compatible to use in hazardous areas (Zone 1, Temp Class T3, Gas Group IIA, IIB).
- Made with corrosion-resistant materials
- Ideal to use in manufacturing, mining, chemical factories, and other places.
“Globe” offers wide Range of Spark proof Chain Pulley Block from 1Ton to 40Tons.
Classifications:-
- As per Hazardous Area (Zone 1, Temp Class T3, Gas Group IIA, IIB).
- Developed for uses in potentially explosive atmosphere (ATEX ZONES).
- Available in Different capacities & Height of lift.
- Test as per relevant IS standard.
- Galvanized or S.S Hand chain as optional.
- Standard/ Low Headroom chain Block with Trolley attachments also available.
Application Area’s
- Petroleum Refineries
- Chemical plants
- Warehouse
- Coal mines
- Gas & power plants
Safety Features
- Hook (Phosphorus Bronze Coated)
- Parts like Load chain sprocket, Hand chain wheel, chain guide rollers etc. are made of non – ferrous alloys (Gun metal / Brass)
Technical Specifications
CHAIN PULLEY BLOCK - ROBO SERIES
| Model | RB1-1T | RB1-2T | RB1-3T | RB2-5T | RB2-7.5T | RB2-10T | RB3-15T | RB3-20T | RB3-25T | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Capacity | TON | 1 | 2 | 3 | 5 | 7.5 | 10 | 15 | 20 | 25 | |
| Standard lifting height | MTR | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Over load test ( 25% of SWL ) | TON | 1.25 | 2.5 | 3.75 | 6.25 | 9.30 | 12.5 | 18.75 | 25 | 31.25 | |
| Load Chain Dia & Pitch | MM | Ø8x24 | Ø8x24 | Ø8x24 | Ø10X30 | Ø10X30 | Ø10X30 | Ø10X30 | Ø10X30 | Ø10X30 | |
| No. of falls | NOS | 1 | 1 | 2 | 2 | 3 | 4 | 6 | 8 | 10 | |
| Hand effort / Man | KG | 28 | 40 | 35 | 40 | 42 | 48 | 46 | 48 | 50 | |
| Velocity ratio | - | 50.5 | 50.5 | 102 | 160 | 240 | 320 | 234 | 312 | 390 | |

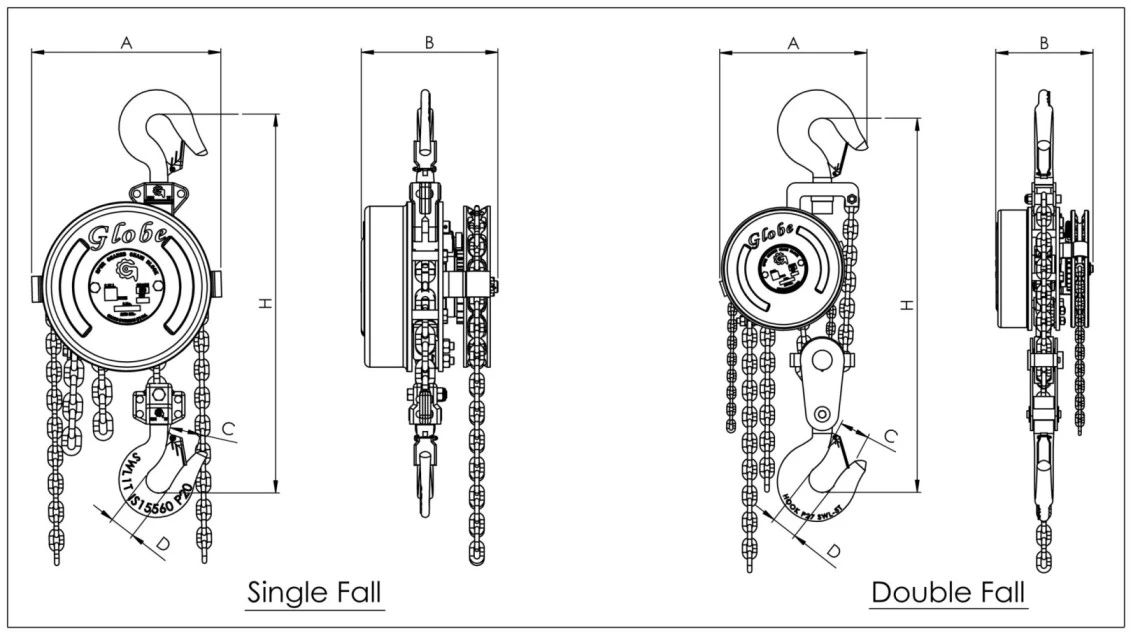

| Dimension (MM) | A | MM | 268 | 268 | 312 | 345 | 420 | 425 | 970 | 1160 | 1000 |
| B | MM | 185 | 185 | 185 | 222 | 220 | 220 | 220 | 220 | 272 | |
| C | MM | 30 | 31 | 40 | 53 | 62 | 62 | 93 | 97 | 130 | |
| D | MM | 35 | 38 | 50 | 59 | 76 | 82 | 122 | 104 | 170 | |
| E | MM | 515 | 515 | 715 | 850 | 960 | 960 | 1550 | 1615 | 1950 | |
| Packing measurement (LXWXH) | CM | 43x28x30 | 43x28x30 | 43x28x30 | 66x45x37 | 60x50x57 | 66x61x59 | 110x69x64 | 122x69x66 | 115x72x71 | |
| Net weight with 3 Mtr. Lift | KG | 28 | 29 | 39 | 72 | 104 | 122 | 280 | 405 | 490 | |
| Gross Weight | KG | 27.8 | 28.8 | 36.8 | 73.5 | 106.5 | 140 | 300.0 | 422 | 540 | |
| Extra weight/Mtr. Lift | KG | 3.1 | 3.1 | 4.46 | 6.0 | 8.2 | 10.3 | 14.6 | 19.0 | 24.0 | |
Note :- Due to continuous development and improvement specification listed above may be changed without notice.
