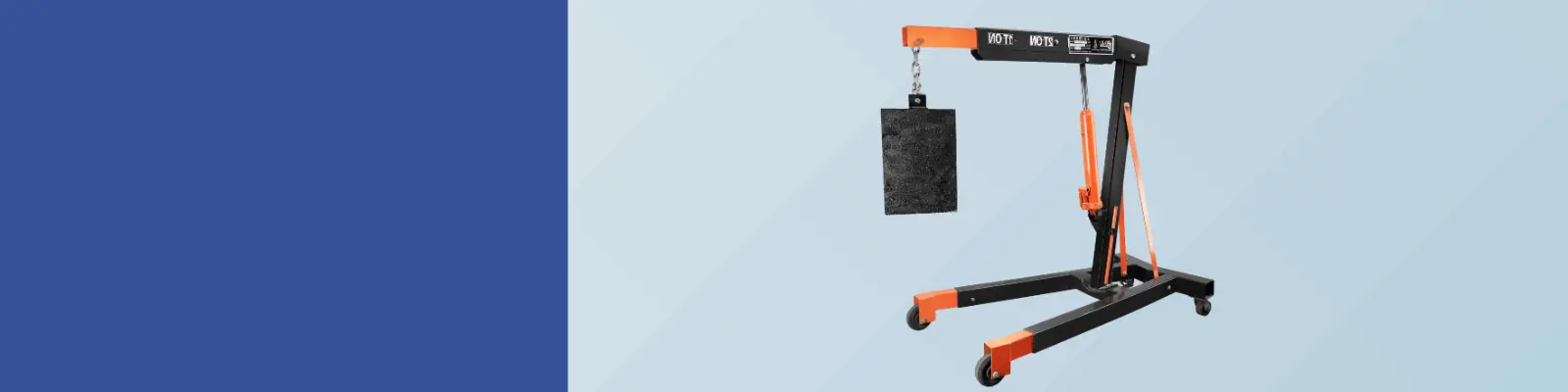

Mobile Floor Crane

Mobile Floor Crane

Application :

These Mobile Floor crane are floor-operated Hydraulic Jib Cranes used for various applications such as tool rooms for the lifting of light weights up to 3 tons, loading and unloading, maintenance and assembly in tool rooms, movement of goods from one location to another, etc. Lifting machines is the best chain pulley block manufacturers in delhi where we provide mobile floor crane.

Features & Benefits :

Light weight, easy to handle and operate, completely foldable and 3-level boom extension. if required can be transported from one location to another through the best chain pulley block manufacturers in Delhi. The high-capacity hydraulic cylinder provides for faster action, available in caster and polymer wheels in Mobile Floor Crane.

  • 2 Nos. heavy duty front wheels fitted with bearing and 2 nos. 360 Degree movable Rear wheels
  • Heavy duty Inbuilt Hydraulic pump and Hardened Cylinder
  • Easy to maintain of Hydraulics

Technical Specifications​

Hydraulic Mobile Floor Crane
ModelHJC-1.0HJC-2.0
CapacityTON12
Hand EffortKG2325
Lift Per StokeMM44
DimensionA1MM9001160
A2MM650850
BMM14601775
B1MM755900
B2MM10501300
HMM320310
H1MM433460
H2MM14701707
H3MM15621420
Load Capacity as per Boom PositionInnerTON12
MiddleTON0.751.5
OuterTON0.51
WheelMMɸ150 Casterɸ150 Caster
ColourBlack & Golden Yellow
OperationManual Hand Operated
Net WeightKG155175
Gross WeightKG155175
Note :- Due to continuous development and improvement specification listed above may be changed without notice.
