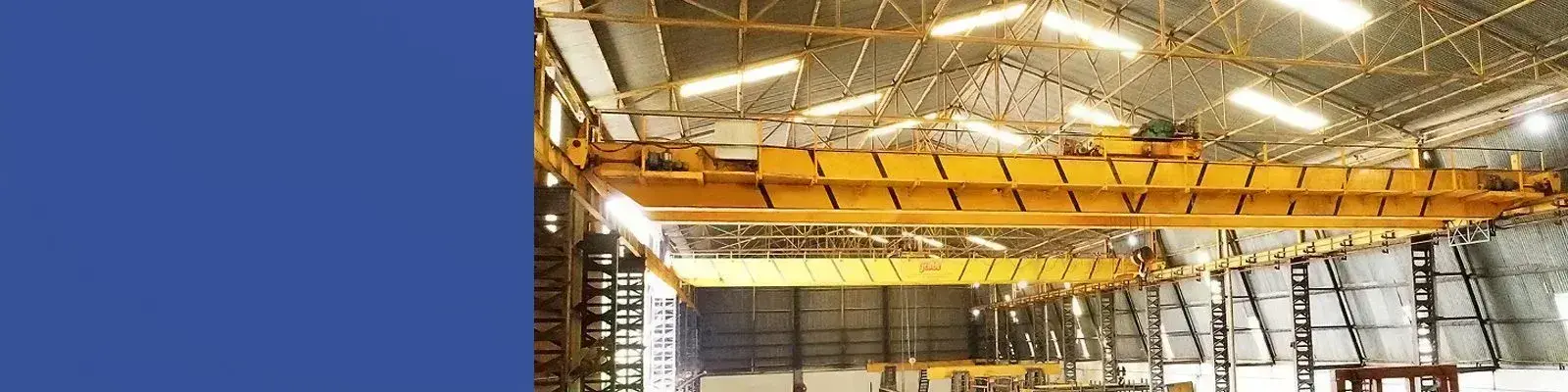

Double Girder EOT Crane

Application :

Double Girder EOT Cranes are widely used in almost every kind of industry and various applications for Material Handling. Specially for medium, heavy & Extra Heavy duty applications. All cranes are designed as per IS 3177 & 807 with latest amendments.

Features & benefits :

“Globe” is the best EOT crane manufacturer and has a wide experience in serving Overhead cranes for Steel melting shops, Rolling mills, Heavy fabrication units, Indian railway Workshops, etc. Some of the features and benefits of double girder EOT crane are:

Easy maintenance due to platforms with handrails
Operator cabins and maintenance cages can be provided.
Higher Operating speeds can be attained.
Specially designed for heavy applications.
Available with IP65 Protection
Available with Flameproof Electrical & Mechanicals
Special features like grabs/magnets can be added.
Suitable to attain high lift.

Facility :

All Cranes manufactured by “Globe” are 100% tested as per IS Standards. Load test, Overload test, operational & Design tests etc are the part of Pre dispatch inspection.

Conclusion:

To sum up, a double girder eot crane is an ideal choice for heavy-duty lifting operations in various industrial settings. It offers numerous advantages over other types of cranes, including high load capacity, better stability, and greater efficiency.

When choosing the right double girder eot crane for your facility, it’s essential to consider factors such as load capacity, span length, lift height requirements, and safety features. Working with us can ensure that you get the best value for your investment.

Download Brochure

Technical Specifications

MODEL	SWL M.T	Span (Mtrs) 'S'	Head Room (Mm) 'C'	End Clearance (Mm) 'A'	Hook Pproaches (Mm)'E'	Hook Pproaches (Mm)'F'	Wheel Base (Mm) 'W'	Girder Projection Below Rail (Mm) 'B'	Crane Width (Mm)	Wheel Load (Approx)(Mt)	Crane Wt. (Approx)(Mt)
GDG-5	5.0	10	1500	200	900	750	3000	200	3700	5.6	9.4
		15	1600	200	900	750	3000	250	3700	6.0	11.6
		22	1800	225	1000	800	4400	350	5200	7.4	16.0
GDG-10	7.5	10	1600	200	900	750	3000	250	3700	7.5	11.4
		15	1700	225	900	750	3200	300	4000	8.0	12.6
		22	1900	250	1000	800	4400	400	5200	9.9	18.4
GDG-10	10.0	10	1700	250	900	750	3200	300	4000	9.5	13.8
		15	1800	250	1000	800	3400	350	4200	10.1	15.5
		22	1900	250	1000	800	4400	400	5200	11.7	21.5
GDG-15	15.0	15	2000	250	1100	900	3800	400	4600	14.3	18.8
		22	2200	250	1200	1000	4400	450	5200	16.5	27.2
GDG-20	20.0	15	2100	275	110	900	4200	400	5300	16.9	20.4
		22	2300	300	1250	1050	4500	450	5800	19.2	28.4
GDG-25	25.0	15	2100	275	1100	900	4200	400	5300	16.9	20.4
		22	2300	300	1250	1050	4500	450	5800	19.2	28.4
GDG-30	30.0	15	2500	300	1000	900	4200	450	5400	23.6	25.5
		22	2700	300	1300	1100	4600	500	6000	26.6	37.5
GDG-40	40.0	15	2900	350	1300	1100	5100	500	6500	28.6	25.5
		22	3100	350	1400	1200	5200	50	6600	33.2	43.0
GDG-50	50.0	15	3200	350	1500	1300	5400	50	7000	36.8	34.6
		22	3300	350	1500	1300	5500	600	7500	40.6	49.5
GDG-60	60.0	18	3800	400	1600	1200	5600	600	7000	49.0	55.0
		22	4000	400	1600	1200	5800	650	7500	52.0	70.0
GDG-80	80.0	15	4000	450	1900	1300	5800	650	7200	52.0	75.0
		22	4200	450	1950	1350	6000	700	7500	53.5	90.0
GDG-100	100.0	15	4200	450	1900	1400	6000	700	7500	58.0	90.0
		22	4500	450	1950	1400	6200	750	7800	61.0	100.0
