Easy & Safe to operate – Design of the monorail travelling trolley provides minimum hand effort to operate on loaded capacities.
Derailing arrangements make our more safe & reliable.
Low maintenance – robust design reduces the maintenance cost after expiry of warranty.
Generates less noise – Precise Machining & heavy duty wheel bearings make the beam trolley sound less.
Adaptable in width so as to suit the I-Beam flange width demands.
Exchangeable Spares
Monorail Travelling Trolley – Beam Trolley
Monorail Travelling Trolley – Beam Trolley
More Details:
- HSN Code: 84251910
- Warranty: 12Month
- 100% Original Products
- Secure Payments
- 100% Buyer Protection
Monorail travelling trolleys are used with Manual Chain blocks & Electric Chain Hoists for the movement of goods on Monorail or Beam. Beam trolleys are available ranging from 1 Ton – 20 Tons. Trolleys are designed with adjustment of Variable sizes of the beam as per capacity. Beam Trolley wheels are mounted on Heavy-duty Ball bearings. It is available in 2 Variants.
- Geared Monorail Trolley
- Push Pull Trolley
Application of Monorail Travelling Trolley:
Monorail travelling trolleys is preferred equipment used for Load movement in large type of industries, Few examples are -:
- Manufacturing and Assembly Lines.
- Construction Sites.
- Automotive Industries
- Tool rooms & fabrication shops Plastic Moulding units
- Generator Maintenance Room
- Pump Houses
Advantages of Beam/Monorail Travelling Trolley:
- Low Headroom
- Heavy-duty high Graded Cast Iron Wheels
- Heavy-duty Frame Plates
- Minimum hand efforts for Operators
- Anti Corrosion Powder Coated Frame Plate & Mounting Plates and Zinc coated trolley wheels
- Easy Installation
- Suitable to travel on curve beams as per company design
- Increased Productivity – Monorail travelling trolley can significantly increse productivity by streamlining material handling processes.They provide a quicker and more efficient means of transporting heavy loads compared to manual labor, Reducing the time and effort required for material Movement.
- Enhanced Safety – Industrial monorail traveling trolleys are equipped with the safety features such as Anti-derailing. This feature help prevent accidents and injuries,ensuring the safety of both workers and the load being transported.
- Reduced manual labor and fatigue- The use of monorail traveling trolleys eliminates the need for manual lifting and carrying of heavy loads, Reducing the risk of worker fatigue and injuries related to repetitive lifting tasks. This leads to improved worker morale and decreased downtime due to potential injuries.
- Improved load control and stability – Monorail traveling trolleys operate on a track system, Providing smooth and controlled movement of the load. This Ensures Precise Transportation,Minimizing the risk of load shifting or damage during transportation.
Why Choose Globe Overseas?
- Quality & Reliability – Every product manufactured by the globe has been cleared by 3 stage inspection. Hence it is safe to use for safe working loads
- Make in India – All Products are designed, Manufactured tested in India
- Continuous Improvement – Our Development team work continuously to understand customer needs and implement the same with our Products.
- Superior Grade Material – All child parts are made with the best-in-class material recommended to achieve longer part life.
Technical Specifications

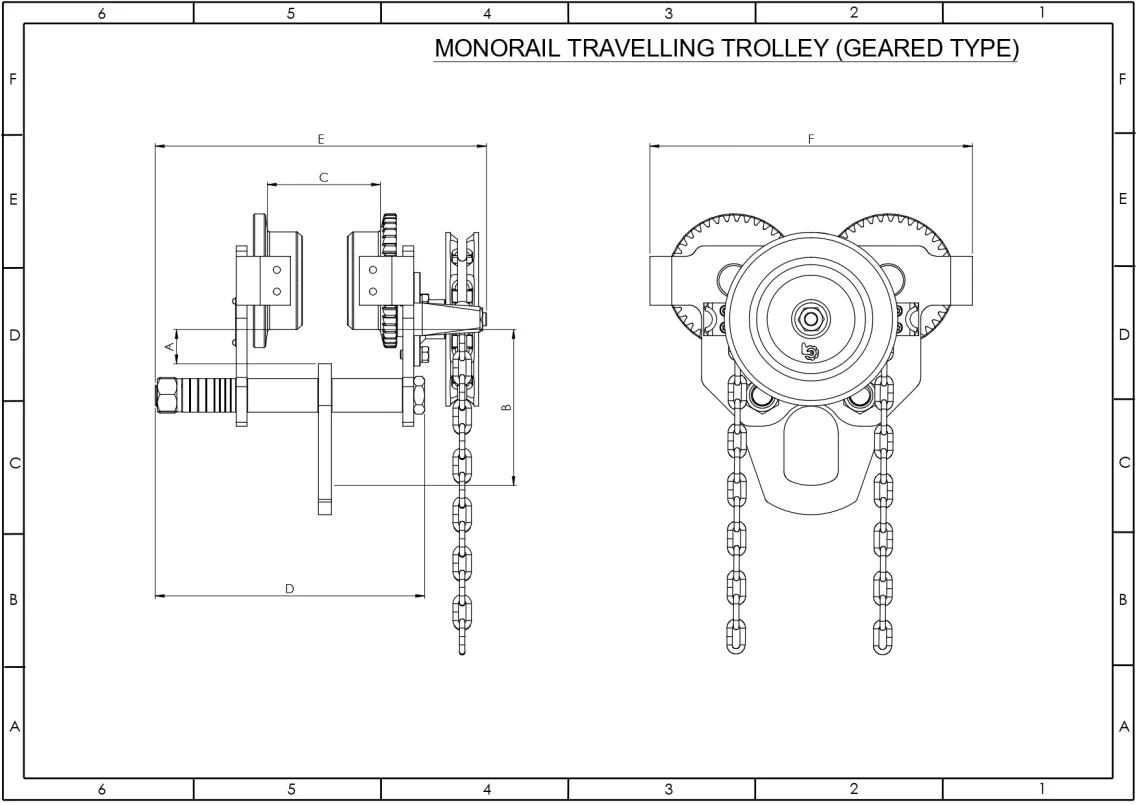

MONORAIL TRAVELLING TROLLEY
GEARED TYPE
| Model | GBT1 | GBT2 | GBT3 | GBT5 | GBT10 | GBT15 | GBT20 | ||
|---|---|---|---|---|---|---|---|---|---|
| Capacity | TON | 1 | 2 | 3 | 5 | 10 | 15 | 20 | |
| Standard lifting height | MTR | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Over load test ( 25% SWL ) | TON | 1.25 | 2.5 | 3.75 | 6.25 | 12.5 | 18.75 | 25 | |
| I-Beam recommended | MM | 65-125 | 75-140 | 100-150 | 125-180 | 140-210 | *300-400 | *400 | |
| Hand Effort | KG | 11 | 15 | 21 | 28 | 31 | 35 | - | |
| Dimension | A | MM | 24 | 26 | 31 | 30 | 30 | 70 | 70 |
| B | MM | 115 | 132 | 144 | 167 | 234 | 345 | 465 | |
| C | MM | 70 | 81 | 104 | 130 | 145 | 310 | 415 | |
| D | MM | 202 | 227 | 248 | 292 | 345 | 552 | 582 | |
| E | MM | 260 | 284 | 305 | 348 | 428 | 648 | 688 | |
| F | MM | 225 | 262 | 297 | 321 | 498 | 792 | 1003 | |
| Hand Chain (Dia X Pitch) | MM | 5x22.5 | 5x22.5 | 5x22.5 | 5x22.5 | 5x22.5 | 6x19 | 6X19 | |
| Radius of curvature (Max) | MM | 2000 | 2000 | 1500 | 1500 | 1500 | N/A | - | |
| Packing measurement (LXWXH) | CM | 27x25x16 | 30x28x19 | 32x31x21 | 36x34x28 | 57x50x41 | 82x65x40 | - | |
| Net weight with 3m lift | KG | 13 | 19 | 27 | 39 | 94 | 178 | 243 | |
| Gross Weight | KG | 13 | 19 | 27 | 40.5 | 107 | - | - | |
| Extra weight / Mtr | KG | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 1.8 | |
Note :- Due to continuous development and improvement specification listed above may be changed without notice
Note :- * 15T & 20T Beam Size can be customised
