Electric Wire Rope Hoists(Fix Type)

Electric Wire Rope Hoists (Fix Type)

Serving Areas

Electric Wire Rope Hoists are designed, manufactured & tested to meet IS standards, Robust Gearbox design ensures better reliability of the product life span and safety.

More Details:

  • HSN Code: 84251110
  • Warranty: 12Month
  • 100% Original Products
  • Secure Payments
  • 100% Buyer Protection

Electric Wire Rope Hoists Item Description:

Heavy-duty fabricated Structure for hoisting & trolley, Cast iron Gear Box Housings with High Precision-cut Oil Cooled Helical internal gears & Pinion makes this machine the most demanding Machine in the industry. All Standard models of Electric wire rope hoists are designed with M5 & M6 rated Gearboxes to improve machine performance.

Heavy Duty ball & Spherical Roller Bearing are provided for Gear Box and Wire rope Drums. Capacity ranging from 0.5 Ton-15 Tons for Single girders are available in different models.

Application:

Electric Wire Rope Hoist are the most preferred Lifting equipment in almost all types of Industry.

  • Assembly Shops
  • Cement Industries.
  • Glass Industries
  • Steel Industry
  • Textile Industry
  • Heavy Fabrication Workshops.
  • Coil Handling

Features / Advantages:

  • Fail-safe Electro Magnetic – Instant braking Arrangement.(DC)
  • Heavy-duty Electric Motors.
  • Provided with safety limit switches.
  • Increase Productivity.
  • Micro Operating speeds by V3F Control Panels.
  • Unbreakable and high-performance push button pendent stations.
  • Customization can be done wrt to Operating speeds & Electrical Protection.
  • Flame Proof Hoists are also available for all variants.
  • Can be provided with Higher lifts

Electric Wire Rope Hoists Variants:

  • Hoist with Manual Trolley – Electric Hoists are provided with Manual Geared or Push-pull Trolley for Load Movement in Monorail beam. Hoisting Motion will be electrical and cross travel motion would be manual.
  • Hoist with Electrical Trolley – Electric Hoists are provided with Electrical Trolley where hoisting and cross travel can be operated electrically through a push-button pendant.

Why Choose Globe Overseas?

“Globe” we are not only electric hoist manufacturers but also your partners for providing the best material handling solutions as per requirement. We provide a wide variety of lifting equipment.

We are Specialists in Design, Engineering, manufacturing, supply, installation, and after-sales service where we understand our customer’s requirements.

Can meet various demands of the customer

We serve electric wire rope hoists to our customers with various models and designs to meet their ultimate demands.

High Quality ensures good working performance

All components manufactured are passed through several quality checks, which helps us to ensure the improved working performance of the equipment.

Wire Rope & Rope Guide Arrangement

High tensile 1960 N/MM Sq. wire rope with good flexibility is used with the precisely machined Guiding arrangement which increases the life of the electric wire rope hoist and is served very safely.

Heavy-Duty Mechanical Parts

The complete structure of the electric wire rope hoist is heavy-duty designed which provides rigidity to the machine for smooth and better operation.

Salient Features

  • DESIGN
    “Globe” Electric Wire Rope Hoists are designed as per IS 3938 – 1983 (R2012) and are suitable for Medium & Heavy duty applications. We also do customizations in hoists as per Customer Requirements.
  • CONSTRUCTION
    “GLOBE” hoist have a unique modular construction which makes them an ideal choice since each sub assembly is easily accessible individually, thus reducing the time and cost involved in the maintenance.
  • STRUCTURE
    Years of Experience for different applications enabled “Globe” to produce heavy duty / robust structure which ensures long life & safety of the user, material & machinery.
  • ROPE DRUM
    Rope drums are fabricated with seamless tubes having flanges at both ends. Each drum is precisely machined and grooved suitably for specified wire ropes. Ropes guiding arrangements ensures & protect overlapping of wire rope & winds full length of rope in one layer.
  • GEAR BOX
    Totally enclosed, immersed oil bath lubricated Gearbox, fitted with heavy duty precision cut helical Gears and Pinions with alloy Steel material.
  • HOOK
    Confirming to IS: 15560 Free to rotate & swivel.
  • BRAKE
    Instant action ‘fail to safe’ Electromagnetic DC disc type, ensures maximum safety and reliability in operation.
  • LIMIT SWITCH
    Snap action limits switch to prevent over hoisting and over lowering is provided for maximum safety.
  • CONTROL
    From push button pendent station supported with steel wire rope, operating at 110 volt from ground level.

Flame Proof / Electric Hoist

Whether it’s a natural gas plant or another, the extraction of natural resources has always been challenging because of the presence of highly flammable gasses, such as methane, ammonia, acetylene, etc. In these regions, even a light spark can be very dangerous, so work must be done by following the utmost safety standards, including the use of a Flame Proof Electric Wire Rope Hoist.

The spark proof electric wire rope hoist is quite popular in plants rich in flammable gasses because they give the best output without producing any spark. The mechanical components of this device are coated with a blend of phosphorus-bronze to prevent any explosion in the plant.

The Globe’s Flame Proof Electric Wire Hoist is the best in the standard as each element of this utility is perfectly designed and meets all the safety norms.

In addition, such a device can lift heavy objects from 1 ton to 15 tons, which is applicable for single girders. And to lift the objects beyond the specified limit, you can go with double girders where the Globe’s Flame Proof Wire Hoist can lift above 15 tons to 25 tons weight.

Safety Standards Of Globe Flame Proof Electric Wire Rope Hoist

The work is performed with high-class safety standards in a hazardous area where flammable gasses are abundant in nature. The reason is a light spark can explode an entire plant, and many people can get hurt. To prevent the same, all the equipment, whether mechanical or electrical, is designed that is suitable for those regions.

The Globe Flame Proof Electric Wire Rope Hoist is manufactured as per the industrial norms that include;

Electrical Components

The main component of a flameproof electric wire rope hoist is the induction motor that transfers electrical energy to mechanical energy to the rotating device. The motor used in the Globe’s flameproof wire rope hoist and other components, such as the Brake, Limit Switch, and Push Button, is ATEX Certified.

Mechanical Components

The mechanical components of a spark-proof electric wire rope hoist need phosphorus-bronze coating. The reason is that friction between the metals can cause a spark, which can be dangerous for such a plant.

So, to avoid any kind of friction, a coating is applied. The mechanical components in Globe’s Spark Proof Electric Wire Rope Hoist are perfectly coated with phosphorous-bronze. In addition, the materials used in this device are non-ferrous such as Brass or Gun Metal.

Key Areas Where Globe Spark Proof Electric Wire Rope Hoist Can Be Used

Globe Flame Proof Electric Hoist is specially designed for use in hazardous areas, and a list of a few is provided below.

1] Coal Mines

2] Refineries

3] Chemical Process Plants

4] Gas Power Plants

5] Warehouse

Classification

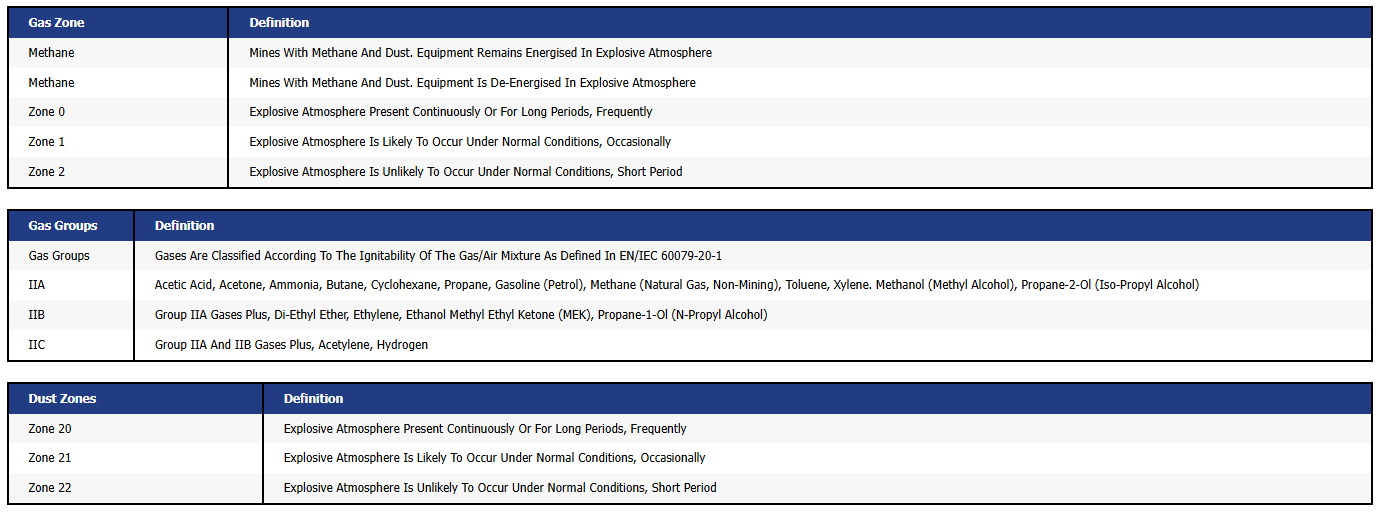

“GLOBE” Flame Proof Electric Hoists are offered for both Single Girder & Double Girder Mountings designed as per Hazardous Area Zone 1, Gas group IIA, Zone 2, Gas group IIA, IIB, IIC and Dust Zone 21 & 22 as per IS/IEC 60079-7.

Capacity Range :-

The mechanical components of a spark-proof electric wire rope hoist need phosphorus-bronze coating. The reason is that friction between the metals can cause a spark, which can be dangerous for such a plant.

So, to avoid any kind of friction, a coating is applied. The mechanical components in Globe’s Spark Proof Electric Wire Rope Hoist are perfectly coated with phosphorous-bronze. In addition, the materials used in this device are non-ferrous such as Brass or Gun Metal.

Application Area’s

  1. Chemical process plants
  2. Coal mines
  3. Refineries
  4. Gas power plants
  5. Warehouse

Safety Features

  1. Electrical components like Motor, Brake, Limit switch, Push button pendent are ATEX certified.
  2. Mechanicals components like Hook are coated with phosphorus Bronze.
  3. All metal to metal contacts are designed and manufactured with Non – Ferrous material (Gun metal / Brass)
Enquire Now
Our Brochure

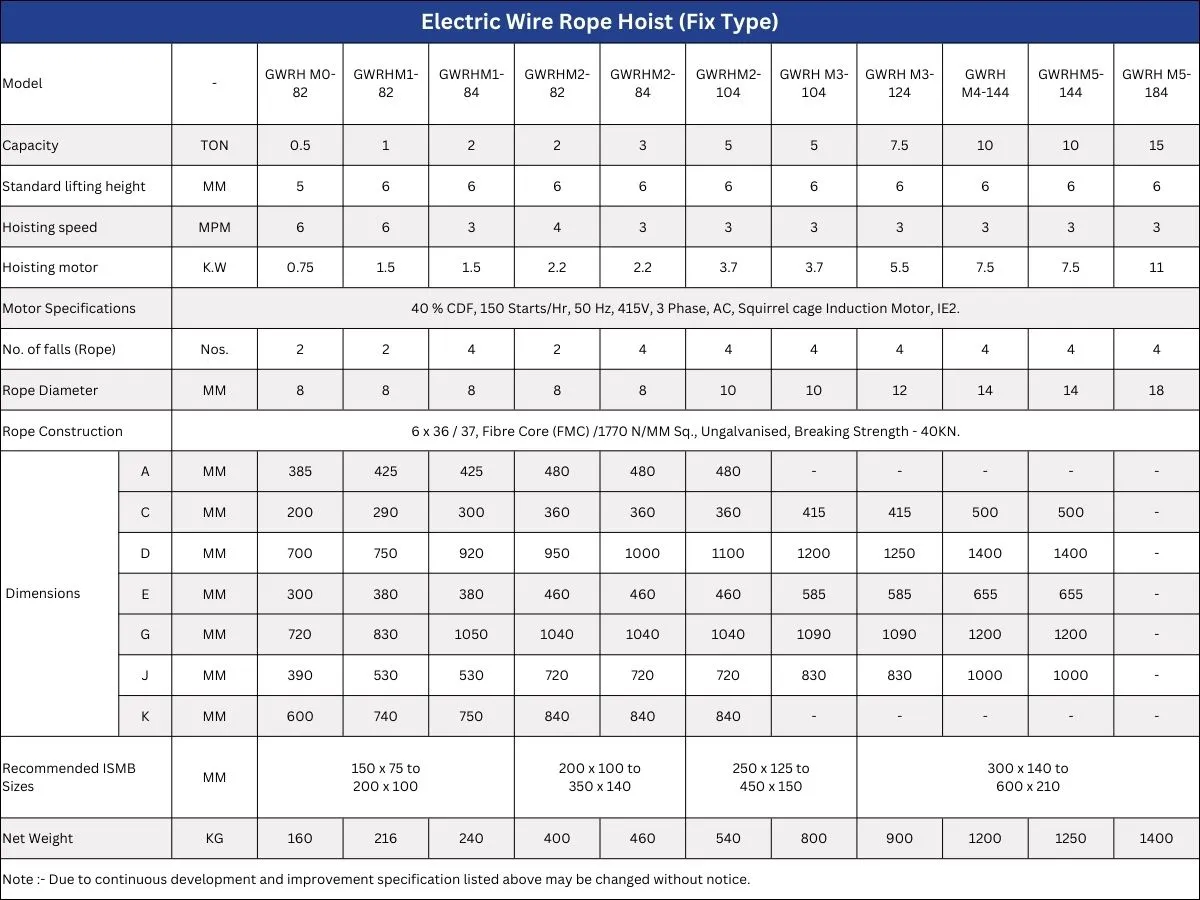

Technical Specifications​

Electric Wire Rope Hoist (Fix Type)
Model GWRH M0-82 GWRHM1-82 GWRHM1-84 GWRHM2-82 GWRHM2-84 GWRHM2-104 GWRH M3-104 GWRH M3-124 GWRH M4-144 GWRHM5-144 GWRH M5-184
Capacity TON 0.5 1 2 2 3 5 5 7.5 10 10 15
Standard lifting height MM 5 6 6 6 6 6 6 6 6 6 6
Hoisting speed MPM 6 6 3 4 3 3 3 3 3 3 3
Hoisting motor K.W 0.75 1.5 1.5 2.2 2.2 3.7 3.7 5.5 7.5 7.5 11
Motor Specifications 40 % CDF, 150 Starts/Hr, 50 Hz, 415V, 3 Phase, AC, Squirrel cage Induction Motor, IE2.
No. of falls (Rope) Nos. 2 2 4 2 4 4 4 4 4 4 4
Rope Diameter MM 8 8 8 8 8 10 10 12 14 14 18
Rope Construction 6 x 36 / 37, Fibre Core (FMC) /1770 N/MM Sq., Ungalvanised, Breaking Strength - 40KN.

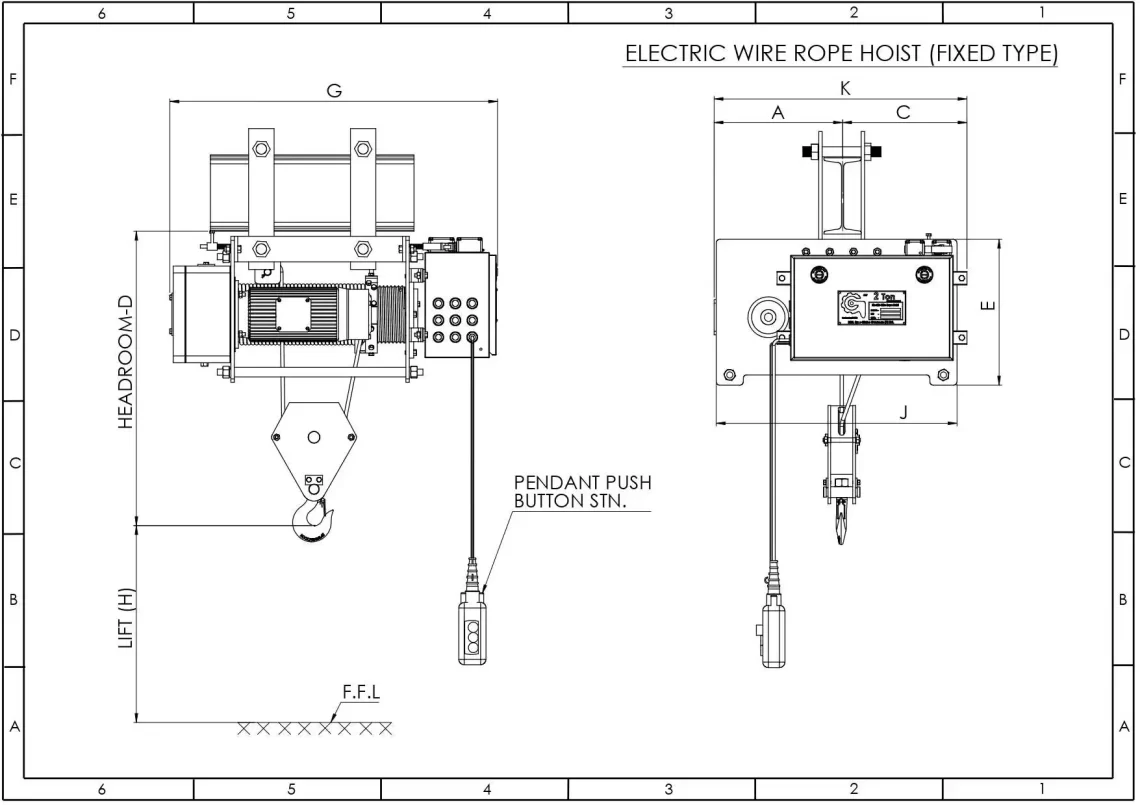

Dimension A MM 385 425 425 480 480 480 - - - - -
C MM 200 290 300 360 360 360 415 415 500 500 -
D MM 700 750 920 950 1000 1100 1200 1250 1400 1400 -
E MM 300 380 380 460 460 460 585 585 655 655 -
G MM 720 830 1050 1040 1040 1040 1090 1090 1200 1200 -
J MM 390 530 530 720 720 720 830 830 1000 1000 -
K MM 600 740 750 840 840 840 - - - - -
Recommended ISMB Sizes MM 150 x 75 to 200 x 100 200 x 100 to 350 x 140 250 x 125 to 450 x 150 300 x 140 to 600 x 210
Net Weight KG 160 216 240 400 460 540 800 900 1200 1250 1400
Note :- Due to continuous development and improvement specification listed above may be changed without notice.
