Electric Chain Hoist is extensively used in the warehouse, workshops, unloading or relocating heavy loads, Steel & Power Plants, Glass manufacturing & Toughening Industries, all types of Automobile industries and their ancillaries, Plastic processing, Steel Furnaces, Coil handling, Paper & Pulp Industries, etc.
Electric Chain Hoist(Hook Suspended)
Electric Chain Hoist (Hook Suspended)
Serving Areas
Engineering
All Mechanical & Structural design parameters are based on IS 3177 & 807, our design & development team works regularly for the up gradation of our product to meet international standards.
More Details:
- HSN Code: 84251110
- Warranty: 12Month
- 100% Original Products
- Secure Payments
- 100% Buyer Protection
Salient Features
- DESIGN
“GLOBE” Electric Chain Hoists are designed as per IS: 6547 and are suitable for Medium & Heavy duty applications. - CONSTRUCTION
“GLOBE” Hoist have a unique modular construction which makes them an ideal choice since each sub assembly is easily accessible individually, thus reducing the time and cost involved in the maintenance. - FRAME
The Frame is of sturdy design, fabricated from tested steel plates and is welded/bolted type. - GEAR BOX
Totally enclosed, gear box with gears made from EN-9/EN- 24, steel and teethed on precision hobbing machines, hardened & tempered. The gears are lubricated with high viscosity grease and need no further lubrication. - ELECTRIC MOTORS
3 PH. 440 Volt, A. C. 50 cycles, Squirrel cage Induction motors normally of BBL/CGL make is used. - LOAD CHAIN
Confirming to IS : 6216-1971, Grade 80, tested, calibrated and duly heat treated. - BRAKE
Instant action ‘Fail to Safe’ Electro Magnetic disc brakes are incorporated to ensure maximum safety and reliability in operation. - LIMIT SWITCH
Snap Action limits switches are used to prevent over hoisting and over lowering. - CONTROL PANEL
Totally enclosed, dust and moisture-proof panel housing with components of standard make like ‘Schneider Electric/ABB, etc., provided control at low voltage for the safety of the operator.
HOOKS
Steel Forge confirming to IS : 15560-2005. Free to rotate & swivel. - TEST
Each Hoist is tested to 25% Overload with confirmation to IS : 6547-1971.
Electric Chain Hoist Item Description:
The Electric Chain Hoist is a revolutionary machine in the trade of material handling equipment is now the most preferred Electric hoist because of its compact and safe design. “Globe” is a leading brand for the manufacturing of Electric Chain hoist ranging from 1 Ton – 5 Ton.
We offer high-quality standard products and ensure safety & reliability. Globe is a well-renowned brand for various kinds of material handling equipment in all parts of India.
Electric Chain Hoist Application:
- CNC/VMC Tool rooms.
- Machine Shops.
- Fabrication shops
- Assembly Shops
- Cement Industries.
Features/Advantages:
- Fail-safe Electro Magnetic – Instant braking Arrangement.(AC/DC)
- Heavy-duty Electric Motors.
- Provided with safety limit switches.
- Increase Productivity.
- Micro Operating speeds by V3F Control Panels.
- Unbreakable and high-Performance push button pendent stations.
- Customization can be done wrt to Operating speeds & Electrical Protection.
- Flame Proof Hoists are also available for all variants.
Electric Chain Hoist Variants:
- Hook suspended Type – Electric Hoists are provided with Fixed Hook for Hoisting Motion only.
- Hoist with Manual Trolley – Electric Hoists are provided with Manual Geared or Push-pull Trolley for Load Movement in Monorail beam. Hoisting Motion will be electrical and cross travel motion would be manual.
- Hoist with Electrical Trolley – Electric Hoists are provided with Electrical Trolley where hoisting and cross travel both can be operated electrically through a push-button pendant.
Why Globe Overseas?
- “GOPL” Electric Chain Hoist is designed and manufactured completely in accordance with IS Standard as well as international Standard.

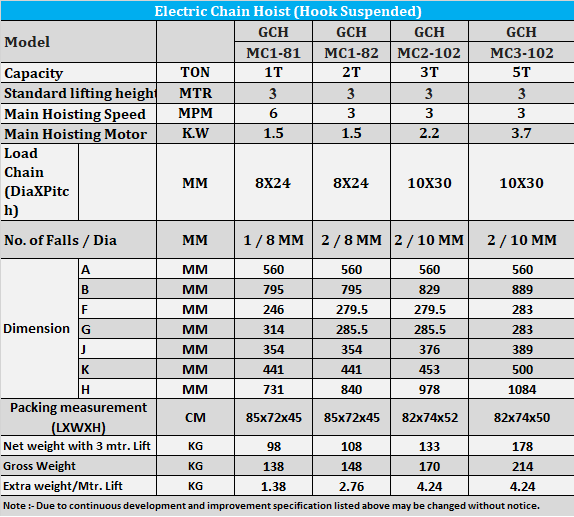

Technical Specifications
Electric Chain Hoist (Hook Suspended)
| Model | GCH | GCH | GCH | GCH | ||
|---|---|---|---|---|---|---|
| MC1-81 | MC1-82 | MC2-102 | MC3-102 | |||
| Capacity | TON | 1T | 2T | 3T | 5T | |
| Standard lifting height | MTR | 3 | 3 | 3 | 3 | |
| Main Hoisting Speed | MPM | 6 | 3 | 3 | 3 | |
| Main Hoisting Motor | K.W. | 1.5 | 1.5 | 2.2 | 3.7 | |
| Load Chain (DiaXPitch) | MM | 8X24 | 8X24 | 10X30 | 10X30 | |
| No. of Falls / Dia | MM | 1 / 8 MM | 2 / 8 MM | 2 / 10 MM | 2 / 10 MM | |

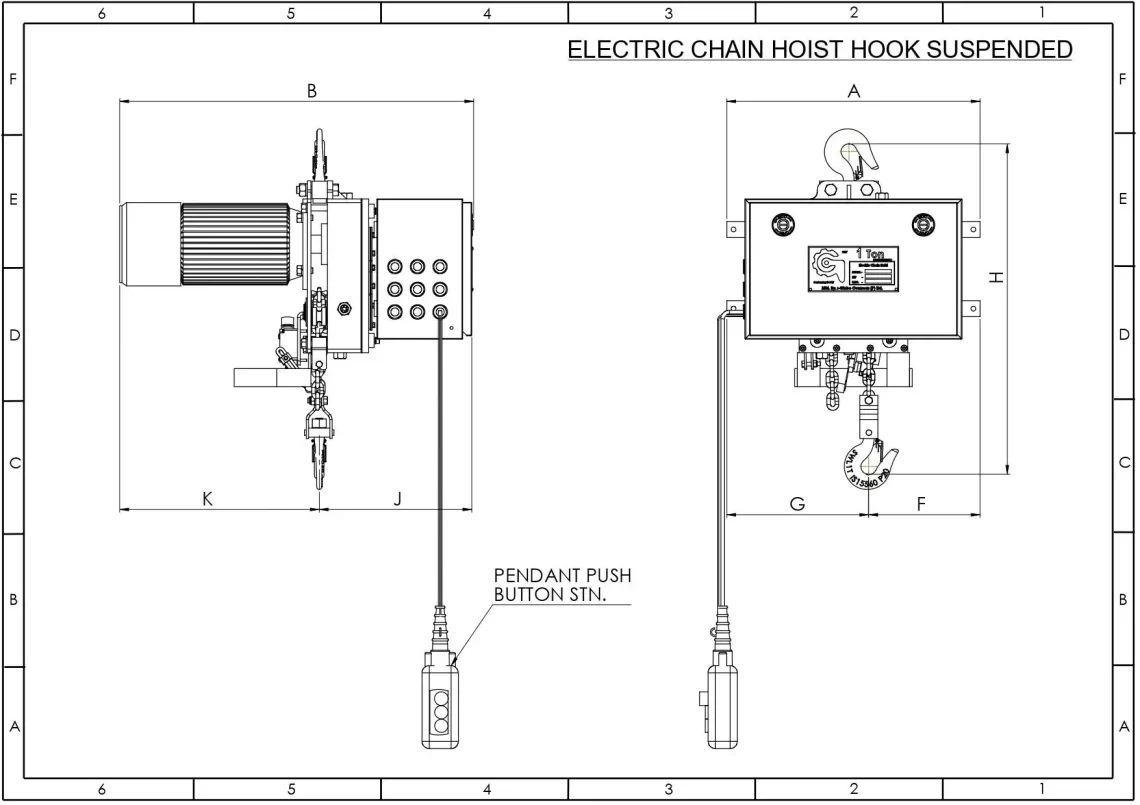

| Dimension | A | MM | 560 | 560 | 560 | 560 |
| B | MM | 795 | 795 | 829 | 889 | |
| F | MM | 246 | 279.5 | 279.5 | 283 | |
| G | MM | 314 | 285.5 | 285.5 | 283 | |
| J | MM | 354 | 354 | 376 | 389 | |
| K | MM | 441 | 441 | 453 | 500 | |
| H | MM | 731 | 840 | 978 | 1084 | |
| Packing measurement (LXWXH) | CM | 85x72x45 | 85x72x45 | 82x74x52 | 82x74x50 | |
| Net weight with 3 mtr. Lift | KG | 98 | 108 | 133 | 178 | |
| Gross Weight | KG | 138 | 148 | 170 | 214 | |
| Extra weight/Mtr. Lift | KG | 1.38 | 2.76 | 4.24 | 4.24 | |
Note: - Due to continuous development and improvement specification listed above may be changed without notice.
Similar Products

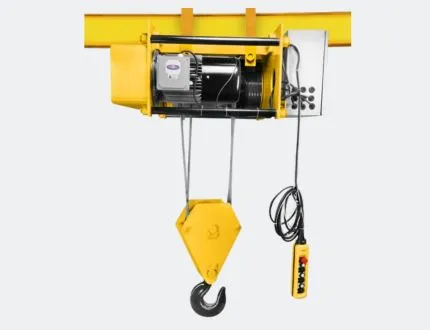

ELECTRIC WIRE ROPE HOISTS (FIX TYPE)
