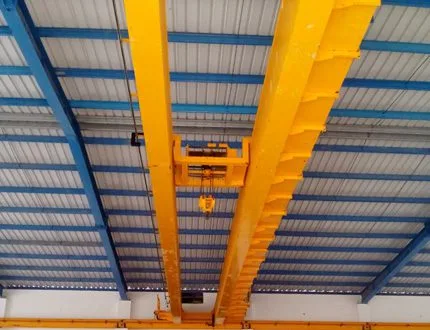

Double Girder EOT Crane

₹6,433.00 – ₹17,900.00 incl. GST

Application

Double Girder EOT Cranes are widely used in almost every kind of industry and various applications for Material Handling. specially for medium, heavy, and Extra heavy-duty applications. all cranes adhere to the highest industry standards for safety and performance.

Features & benefits

“Globe” is the best EOT Crane Manufacturer and has a wide experience in serving Overhead cranes for Steel melting shops, Rolling mills, Heavy fabrication units, Indian railway Workshops, etc. Some of the features and benefits of Double Girder EOT Crane are:

  • Easy maintenance due to platforms with handrails.
  • Operator cabins and maintenance cages can be provided.
  • Specially designed for heavy applications.
  • Available with IP65 Protection.
  • Suitable to attain high lift.
  • Available with Flameproof Electrical & Mechanicals.
  • Special features like grabs/magnets can be added.

Facility

All Cranes manufactured by “Globe” are 100% tested as per IS Standards. Load tests, Overload tests, operational & Design tests, etc are part of the pre-dispatch inspection.

Conclusion

To summarize, a Double Girder EOT Crane is an ideal choice for heavy-duty lifting operations in various industrial settings. It offers numerous advantages over other types of cranes, including high load capacity, better stability, and greater efficiency.

When choosing the right Double Girder EOT Crane for your facility, you must consider factors such as load capacity, span length, lift height requirements, and safety features. Working with us can ensure that you get the best value for your investment.

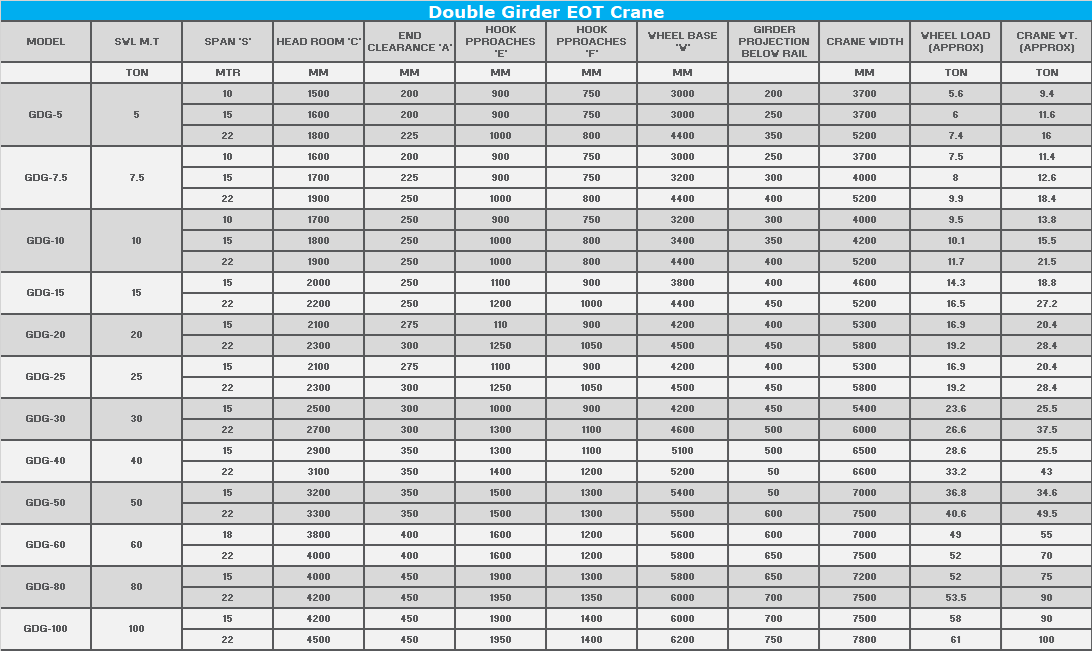

Technical Specifications​

Double Girder EOT Crane
Model Swl m.t Span 's' Head room 'c' End
clearance 'a'		 Hook
pproaches 'e'		 Hook
pproaches 'f'		 Wheel base
'y'		 Girder
projection
below rail		 Crane width Wheel load
(approx)		 Crane wt.
(approx)
TON MTR MM MM MM MM MM MM TON TON
GDG-5 5 10 1500 200 900 750 3000 200 3700 5.6 9.4
15 1600 200 900 750 3000 250 3700 6 11.5
22 1800 225 1000 800 4400 350 5200 7.4 16
GDG-7.5 7.5 10 1600 200 900 750 3000 250 3700 7.5 11.4
15 1700 225 900 750 3200 300 4000 8 12.5
22 1900 250 1000 800 4400 400 5200 9.3 18.4
GDG-10 10 10 1700 250 900 750 3200 300 4000 9.5 13.8
15 1800 250 1000 800 3400 350 4200 10.1 15.5
22 1900 250 1000 800 4400 400 5200 11.7 21.5
GDG-15 15 15 2000 250 1100 900 3800 400 4600 14.3 18.8
22 2200 250 1200 1000 4400 450 5200 16.5 27.2
GDG-20 20 15 2100 275 110 900 4200 400 5300 16.3 20.4
22 2300 300 1250 1050 4500 450 5800 19.2 28.4
GDG-25 25 15 2100 275 1100 900 4200 400 5300 16.3 20.4
22 2300 300 1250 1050 4500 450 5800 19.2 28.4
GDG-30 30 15 2500 300 1000 900 4200 450 5400 23.6 25.5
22 2700 300 1300 1100 4600 500 6000 26.6 37.5
GDG-40 40 15 2900 350 1300 1100 5100 500 6500 28.6 25.5
22 3100 350 1400 1200 5200 50 6600 33.2 43
GDG-50 50 15 3200 350 1500 1300 5400 50 7000 36.8 34.6
22 3300 350 1500 1300 5500 600 7500 40.6 43.5
GDG-60 60 18 3800 400 1600 1200 5600 600 7000 49 55
22 4000 400 1600 1200 5800 650 7500 52 70
GDG-80 80 15 4000 450 1900 1300 5800 650 7200 52 75
22 4200 450 1950 1350 6000 700 7500 53.5 90
GDG-100 100 15 4200 450 1900 1400 6000 700 7500 58 90
22 4500 450 1950 1400 6200 750 7800 61 100
